Pictures to: 3.1 TEM Work at Cornell University


3.1.1. TEM Investigations of Grain Boundaries in Silicon


Part 3: Auxiliary Pictures

Pictures will follow that were not included in the paper.

Grain boundaries in Si

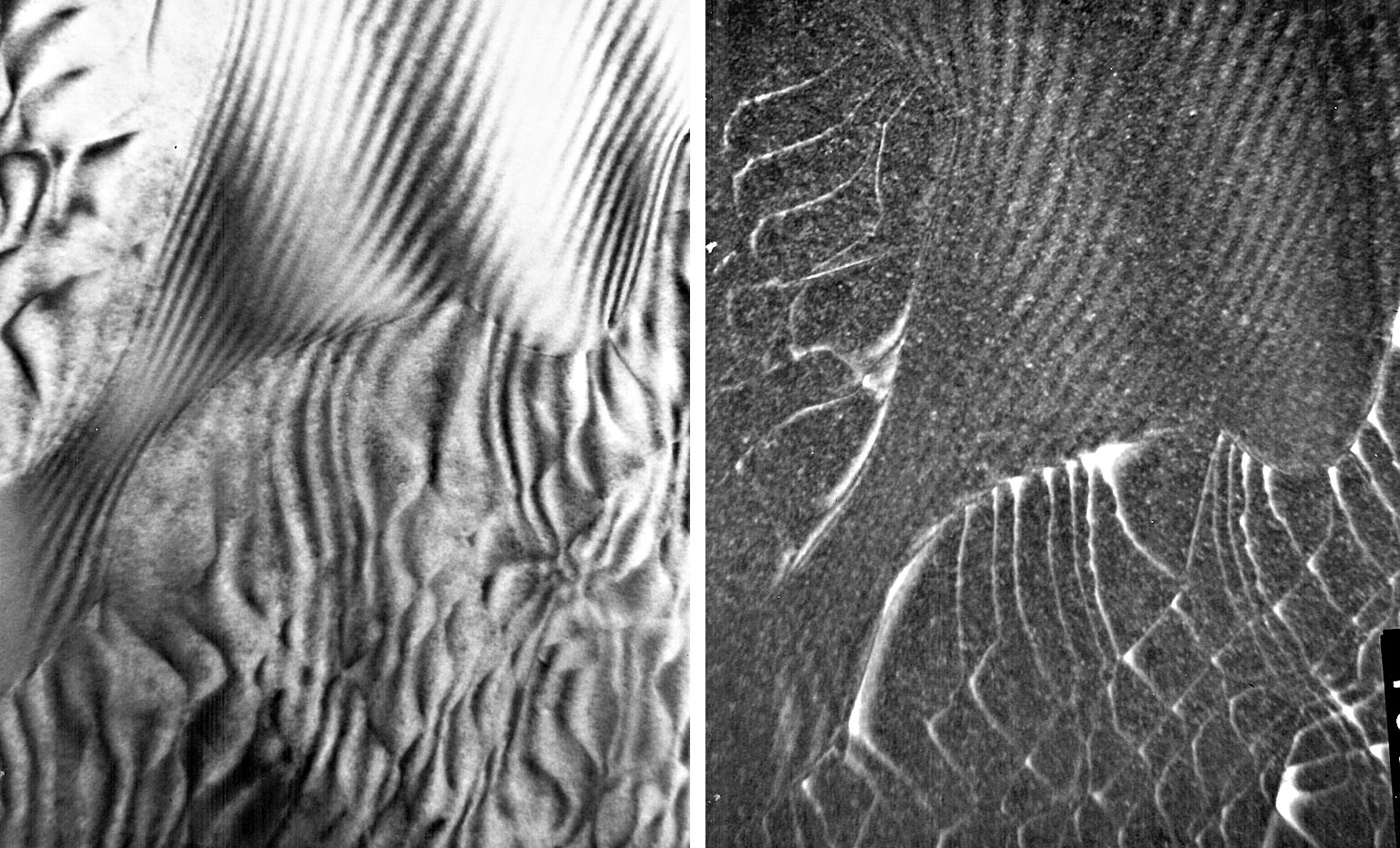

Comparison Bright Field - Weak Beam
Just shows that it was not so easy to see the structures clearly.

Grain boundaries in Si; HRTEM

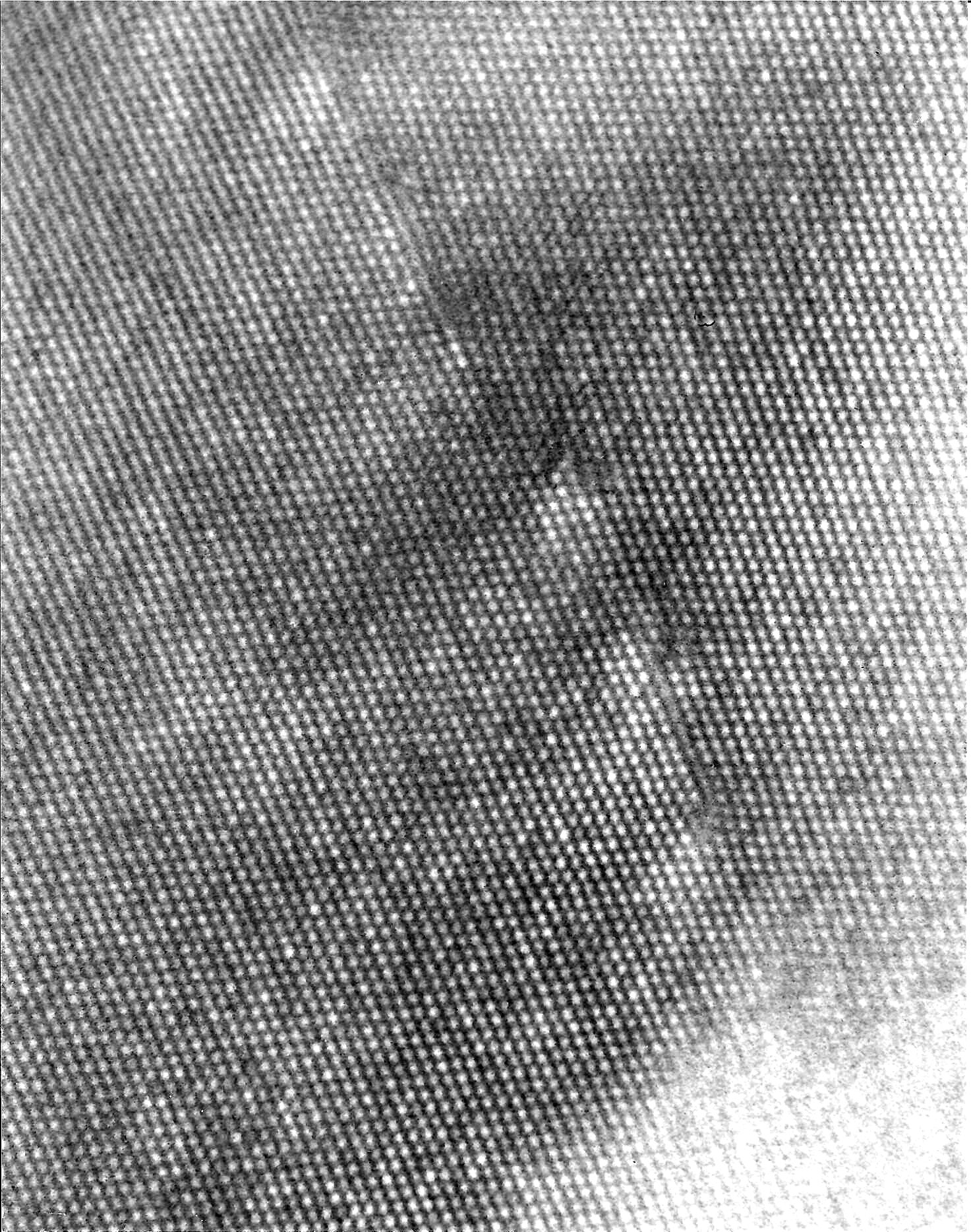

HRTEM image of small-angle tilt boundary in Si.
Similar to Fig. 15 in publication. This may not have been the very first HRTEM of a small angle boundary
but it was definitely among the first ones.

Grain boundaries in Si; HRTEM

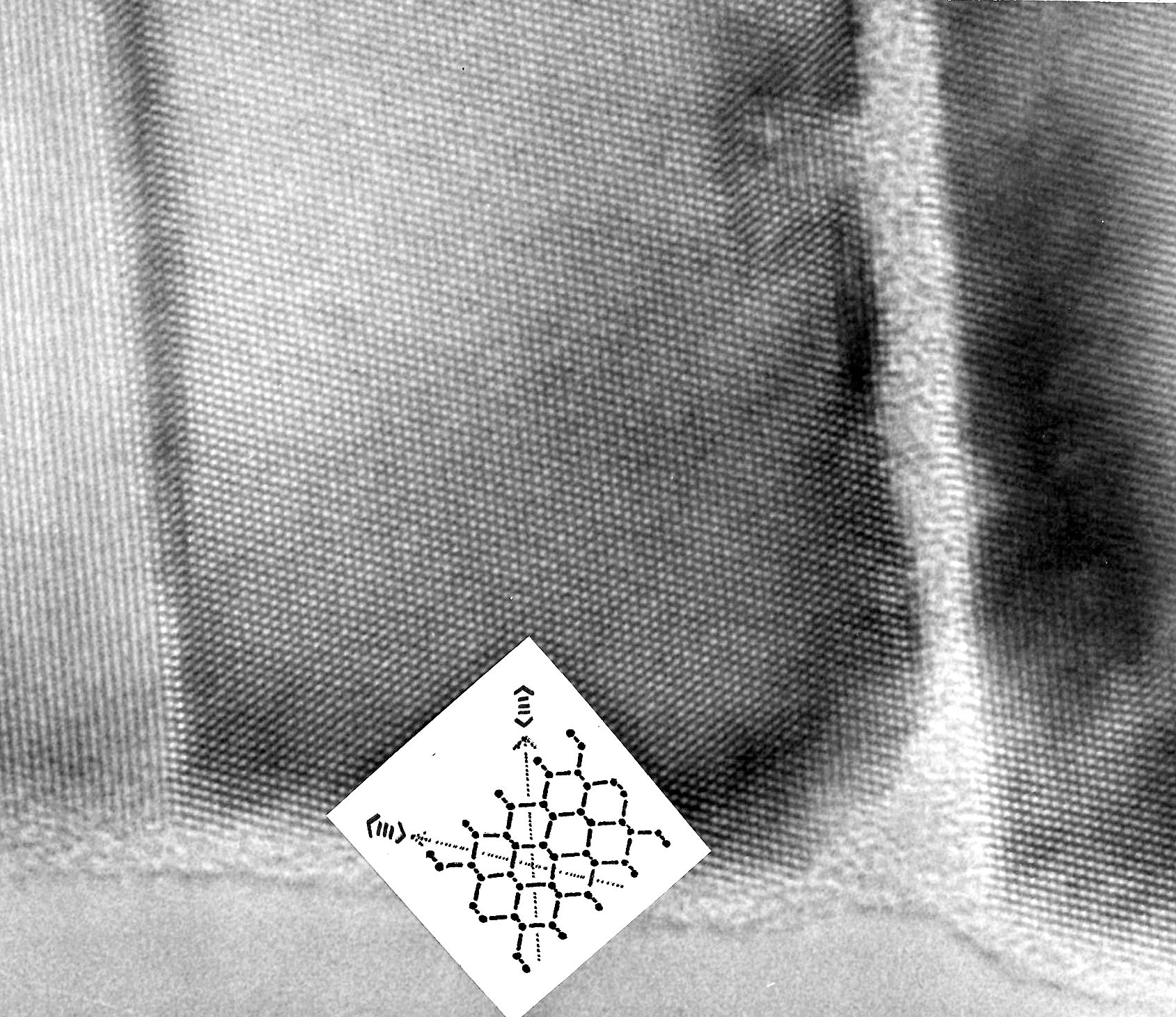

Grain boundary decoupled from amorphous regions?
The GB is on the left and a parallel-running amorphous region (SiO2?) nearby.
