A large number of the A-swirl defects found hart ab extremely complex structure. There are explanations for this but some questions remain unanswered.
  In the following I give several examples without much comment. Read the publications if you are interested. Note that not all dislocations
are shown due to contrast conditions. Faint lines including, on occasion a few "dots" (small precipitates) are likely to denote dislocations out of contrast.


Swirl defects in Si
Here we see how complex structures start out Loops become elongated and very long dipoles are pulled out of the center.
Loops become elongated and very long dipoles are pulled out of the center.

Swirl defects in Si <TABL">
Similar to the one above
Imaged with 2 different diffraction conditions

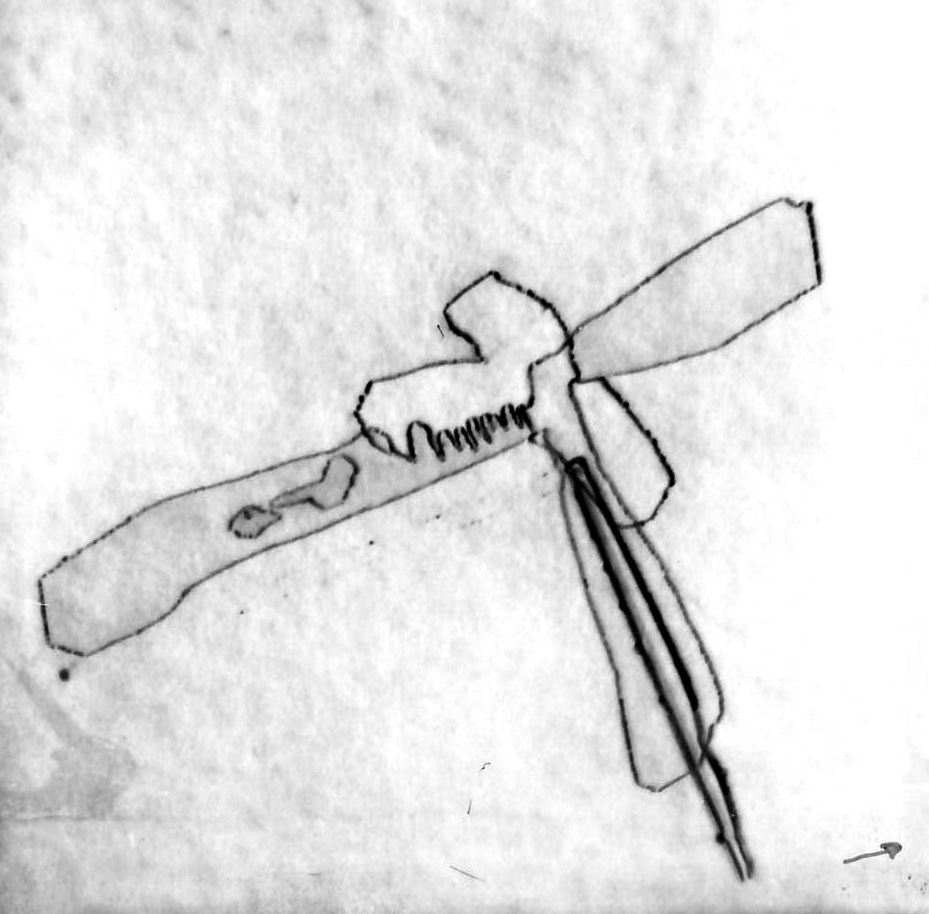

Possibly showing some climb of screw dislocation parts (The zig-zag structure center left)

Swirl defects in Si
It's getting complicated. Where a dislocation reached the original surface, an etch pit develops.

<TABL">
Same as above.
Different diffraction condition

Swirl defects in Si

Swirl defects in Si

Swirl defects in Si

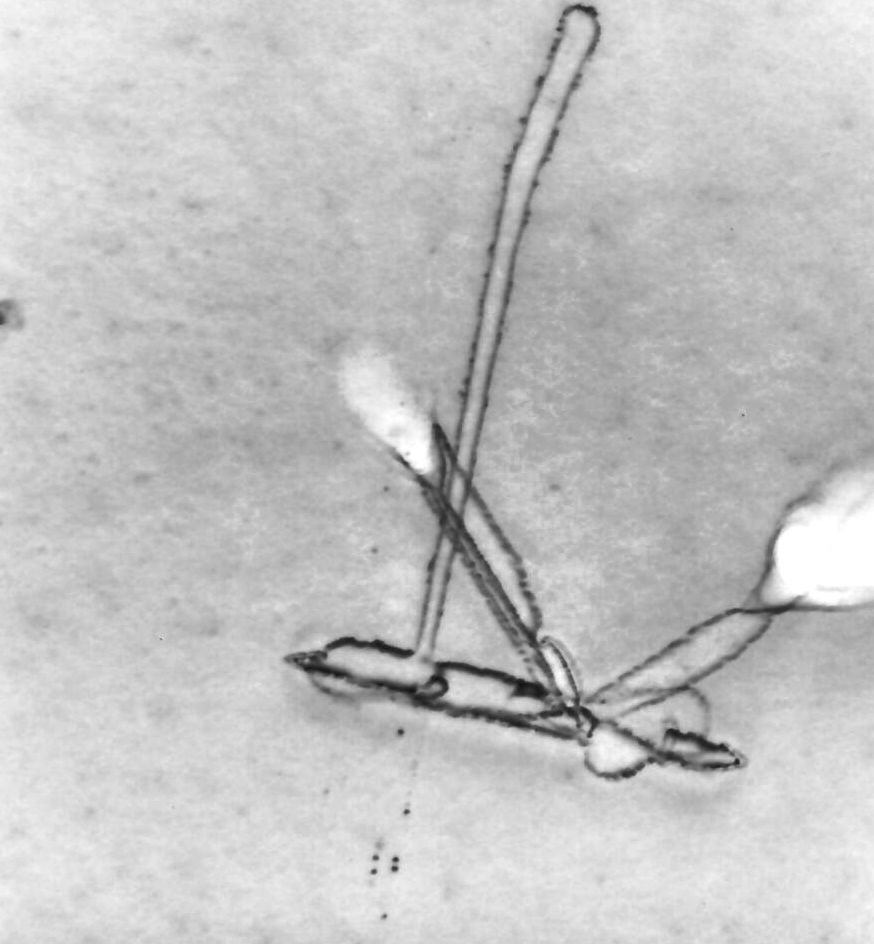

Frequently long dipoles are decorated with small dislocations loops.

Swirl defects in Si

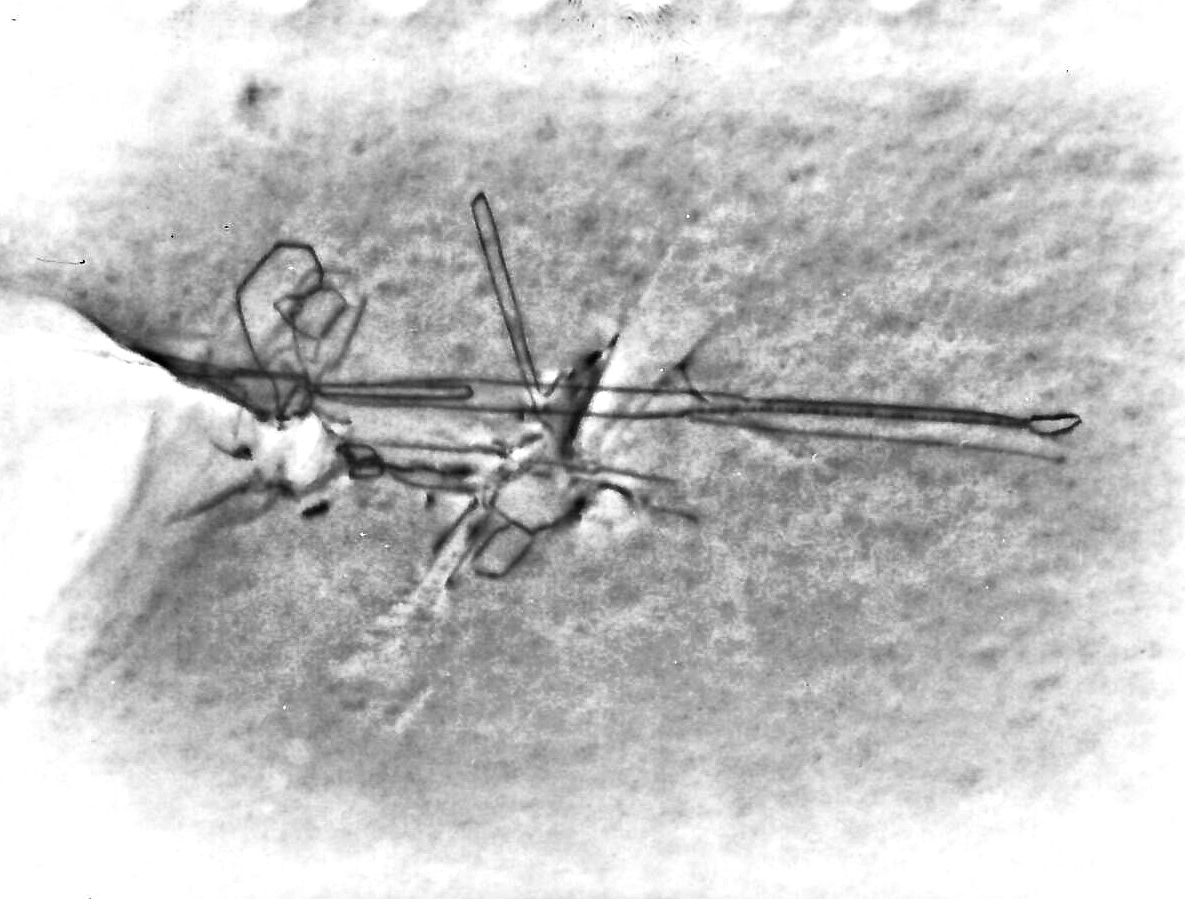

A "monster", already too large to be fully contained in the specimen.

Swirl defects in Si

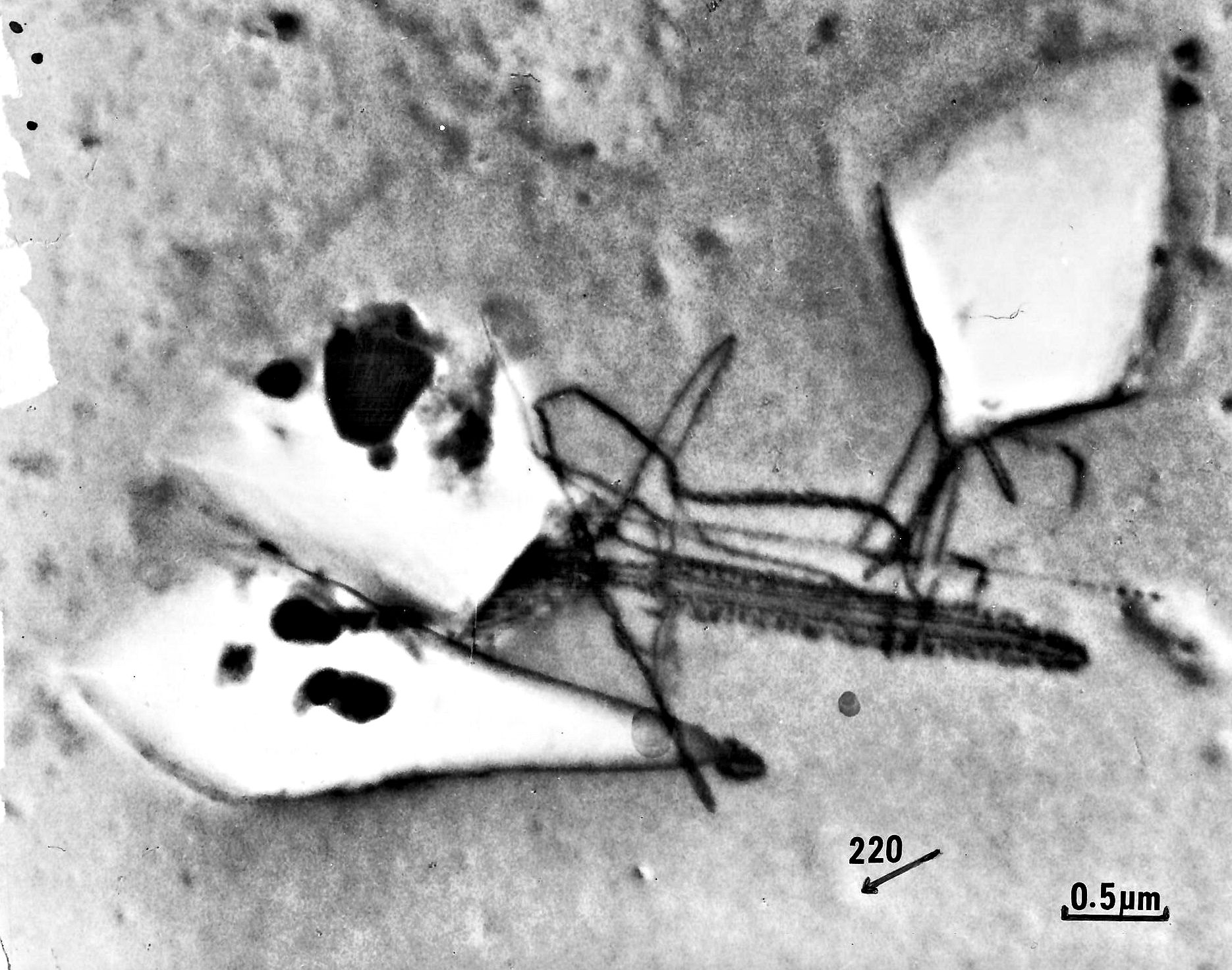

Detail of the "monster" from above..
The "things" decorating some of the dislocations lines might be precipitates but do behave like
small dislocation loops of the interstitial type in involved contrast analysis.

Swirl defects in Si
The ultimate monster
Demonstrates nicely what we learned then and again and again
in years to follow: Some supersaturated point defects in
silicon – self-interstitials, vacancies, foreign atoms like oxygen
, carbon, iron, nickel, …, are not doing much if they don’t find
some help in nucleating some agglomerate. If nucleation is
possible, however, huge defects (always deadly for devices) may
develop out of almost nothing. Controlling or better preventing
nucleation is thus the key for making working integrated circuits
Finally, some pictures, drawings and text about loop analysis straight out of my thesis


Swirl defects in Si
How to determine the Burges vector and the type..
Note that typically 10 - 20 pictures were taken to be on the safe side
Read the publications for detail

Swirl defects in Si

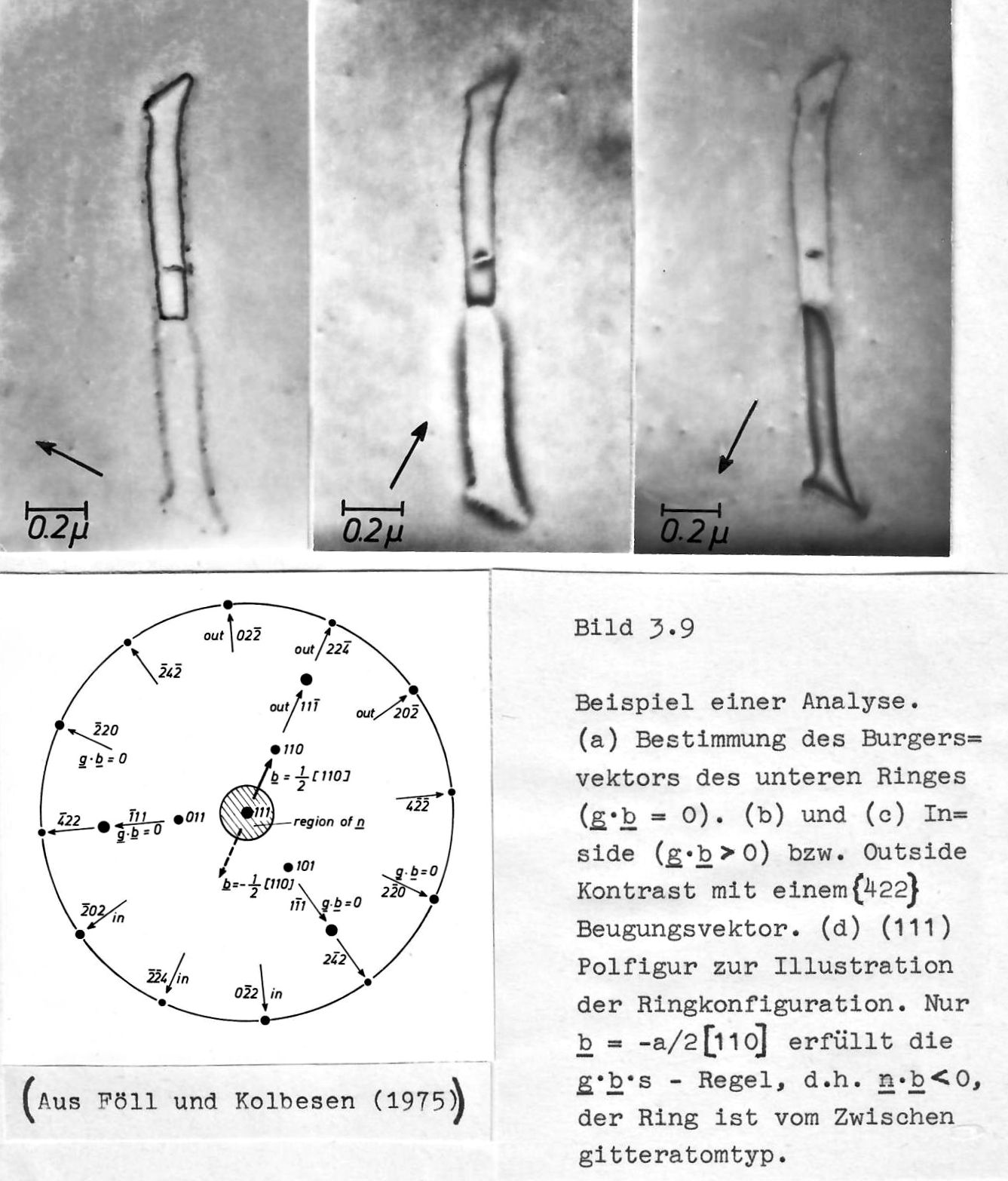

Analyzing the small dislocation loops.
Can you see the inside - outside contrast behavior? This takes already the famous "eye of faith" .
The important small details were already lost in these small micrographs intended for publication.

Swirl defects in Si
Inside - outside contrast experiment with small loops.
Now you can see it!
