5.3 Pore Etching
Most old pictures have not survived. Here is what I still have.


Discovery macropores in Si
Fig. 7 in publication 67

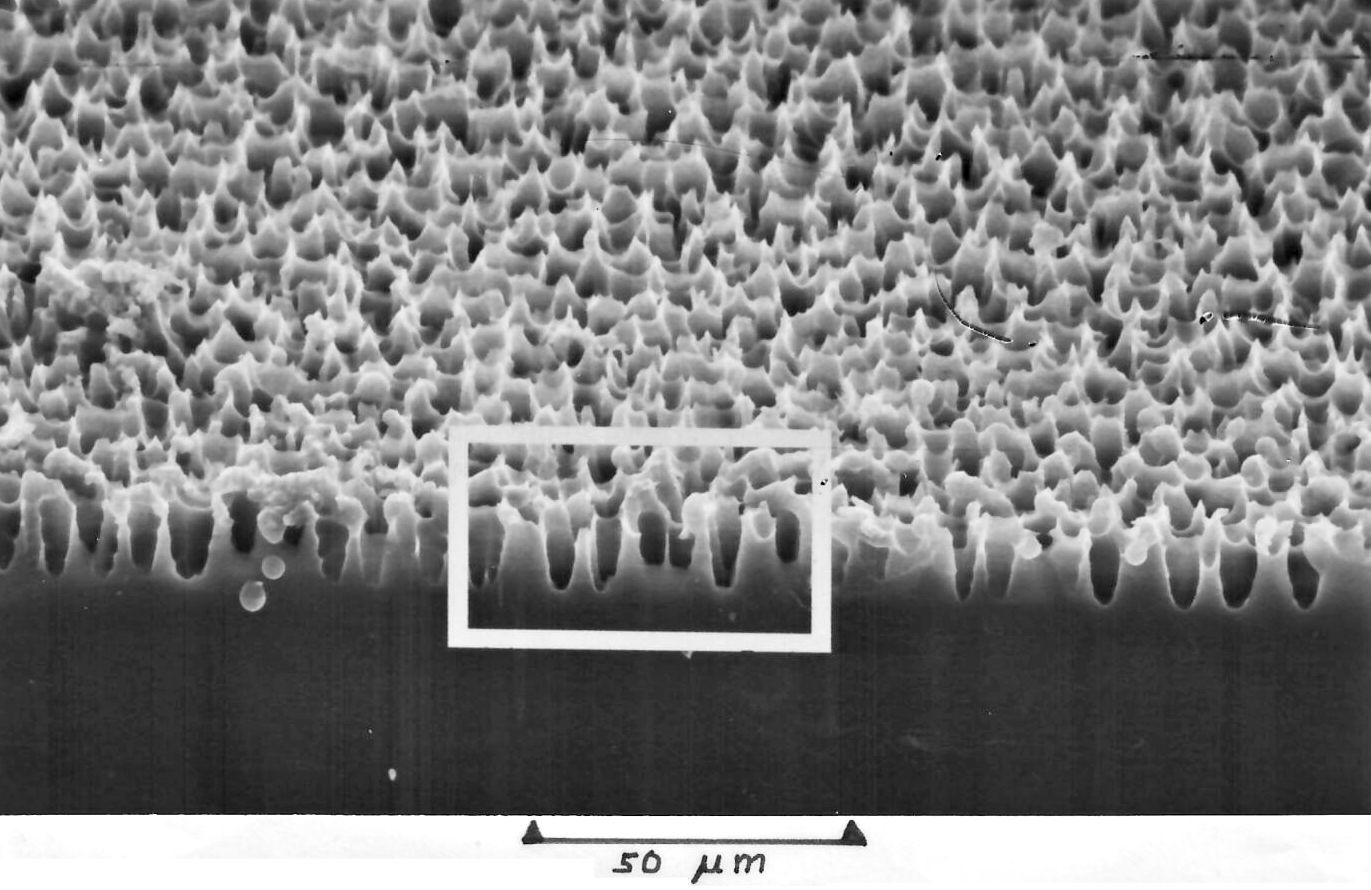

Microstructure of n-type Si after prolonged etching with I < IPSL


Discovery macropores in Si
Discovery macropores in Si
Pictures not in publications
but relating to Fig. 3 in publication 60


Discovery macropores in Si

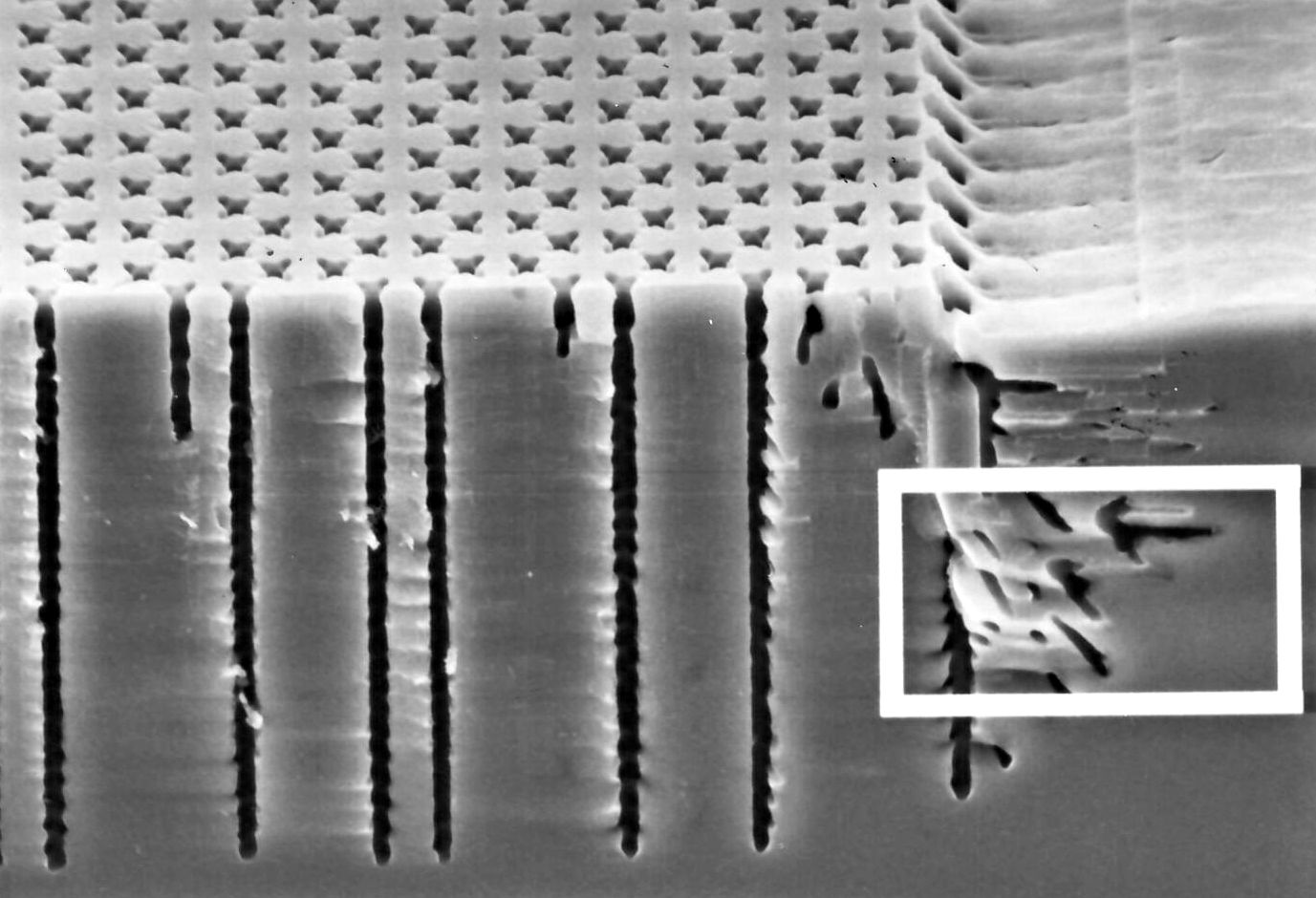

Fig 9 in publication 67 and relating to Fig 9 in 60

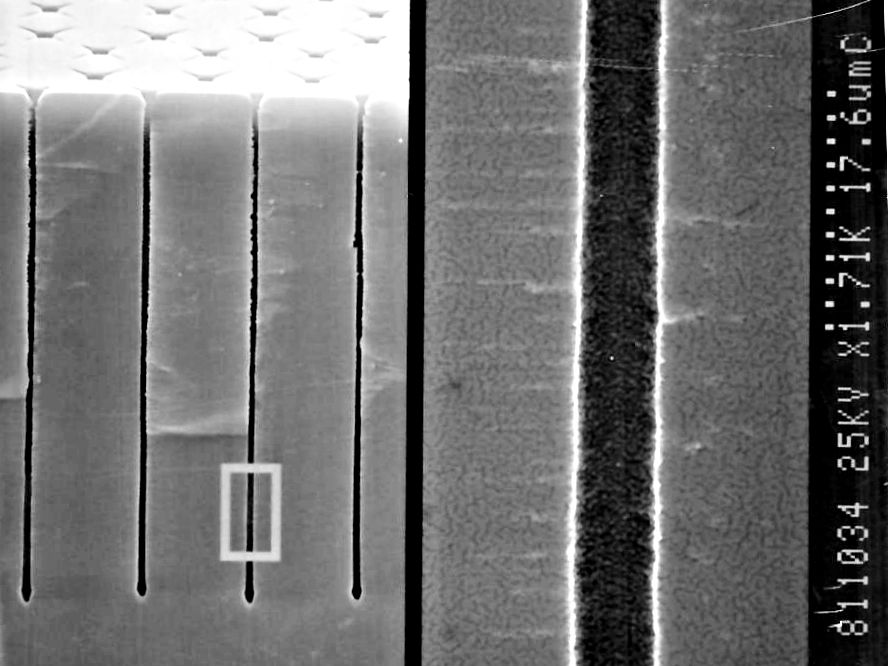

Fig. 9. SEM micrograph (cross section, 0o) of electrochemically etched trenches with high aspect ratio. (B2 sample, 10V, 30 min,330 pA/trench; all three samples: photocurrent adjusted by back sideillumination, PSL removed by 10s in 10 w/o KOH.)

The picture rom the full paper (ref, 60) follows


Discovery macropores in Si
Pictures not in publications
but obviously related.
