5.1 Solar Cell Research


First, some of the pictures in article 56: "The S-web technique for high-speed growth of Si-sheets" plus some auxiliaries.
Note the Captions for Figs- 7 and 8 are interchanged. I give you the correct captions with the figures


S-Web, solar Si

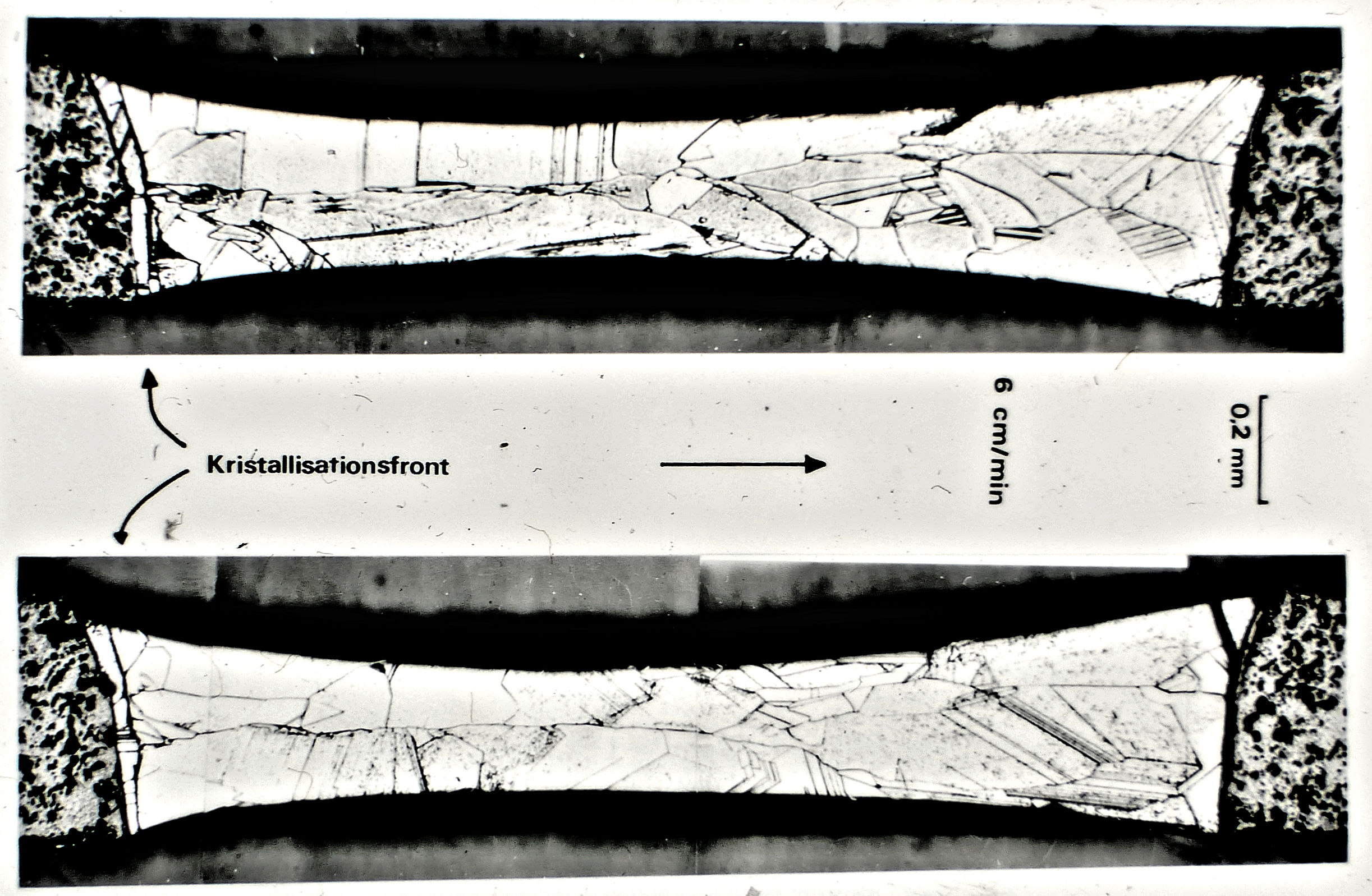

Fig. 1 in publication 56
Also used in various reports


S-Web, solar Si
Fig. 3 in publication 56
Also used in various reports

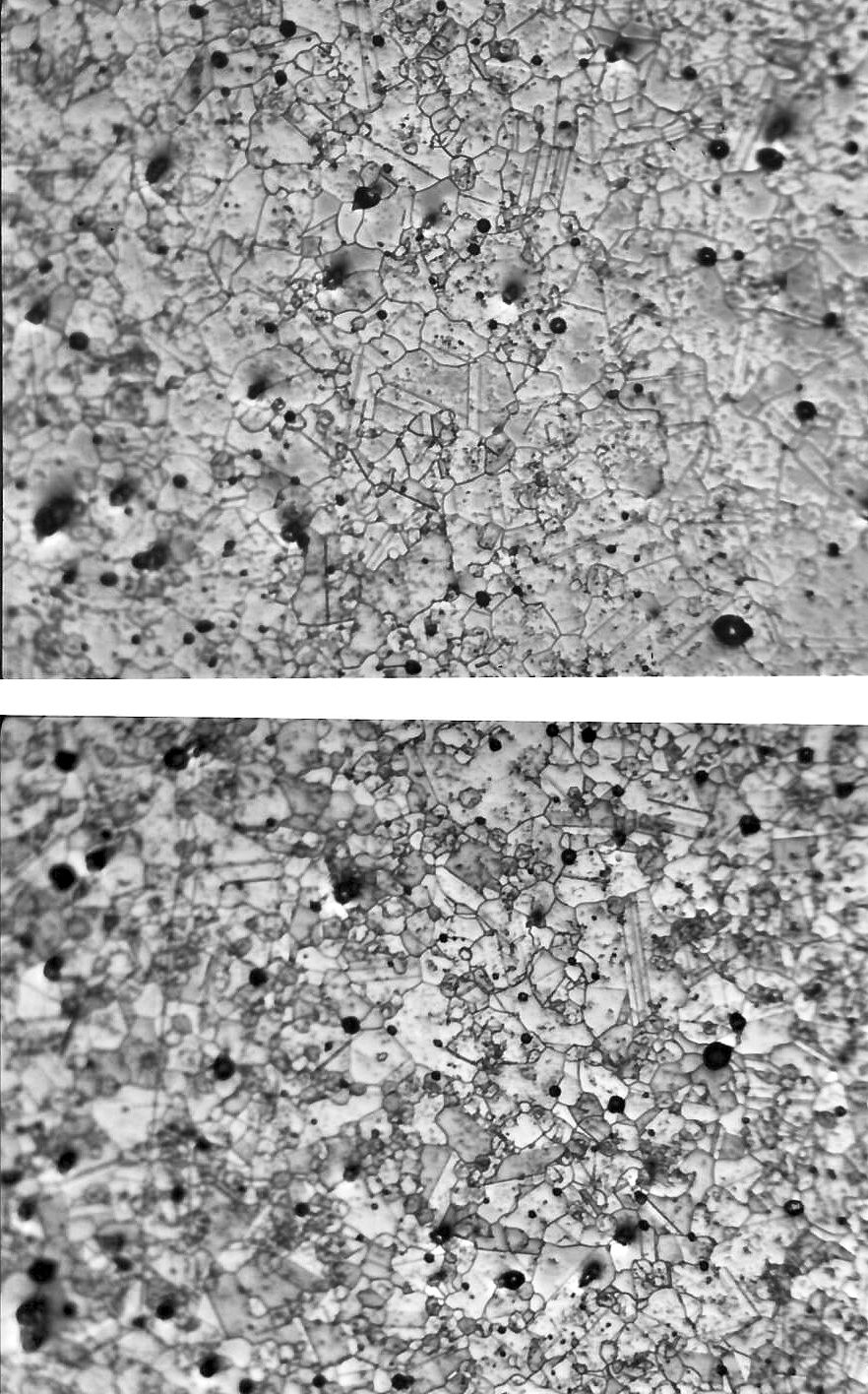

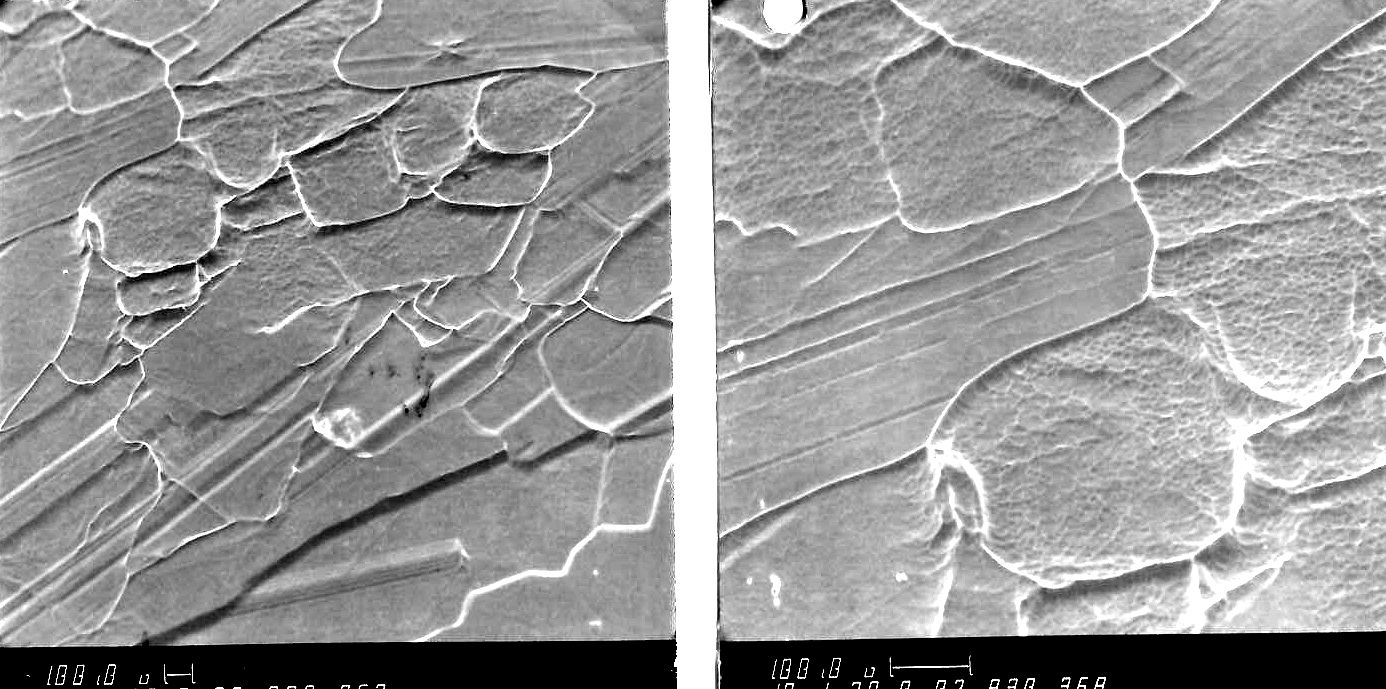

S-Web, solar Si

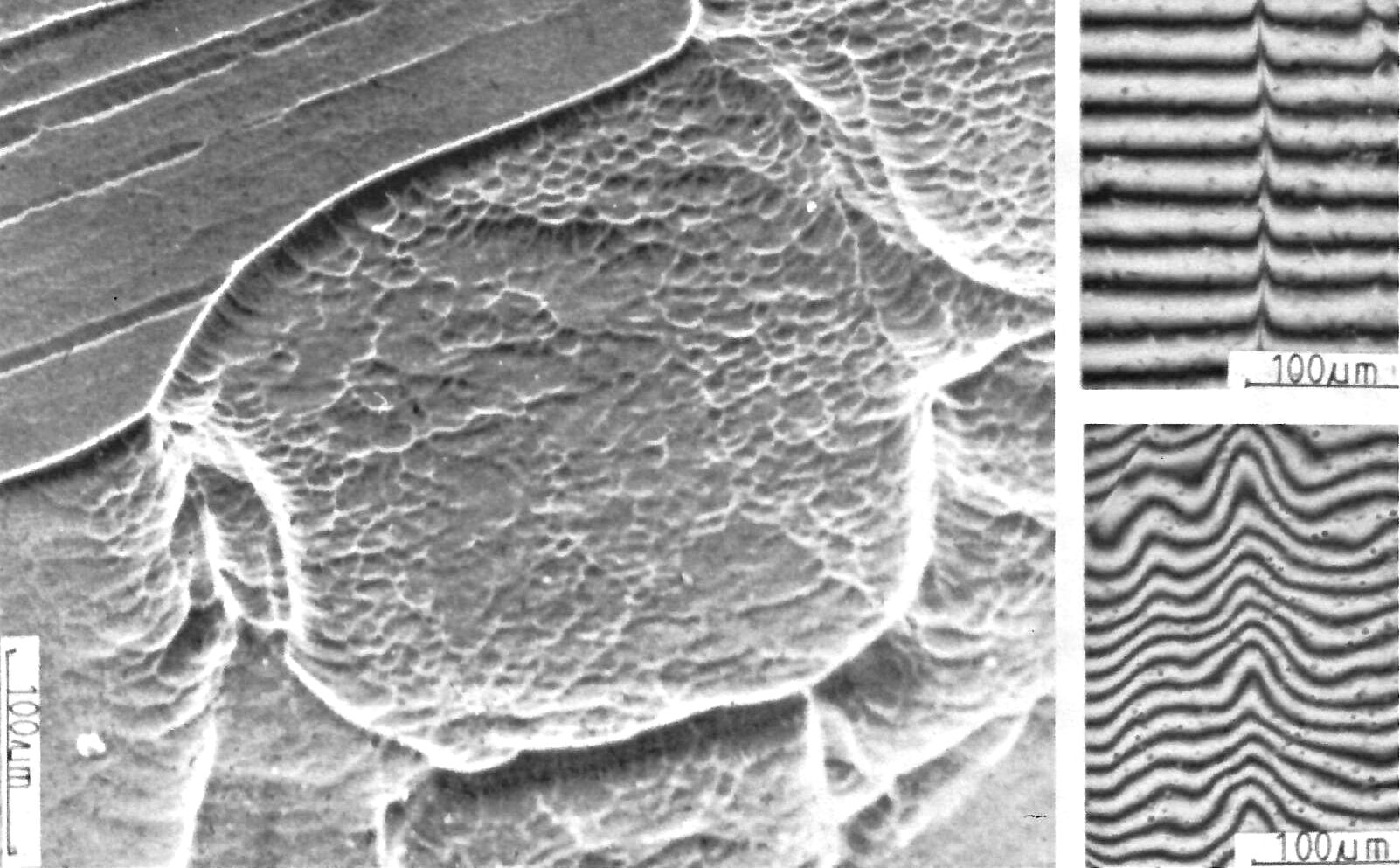

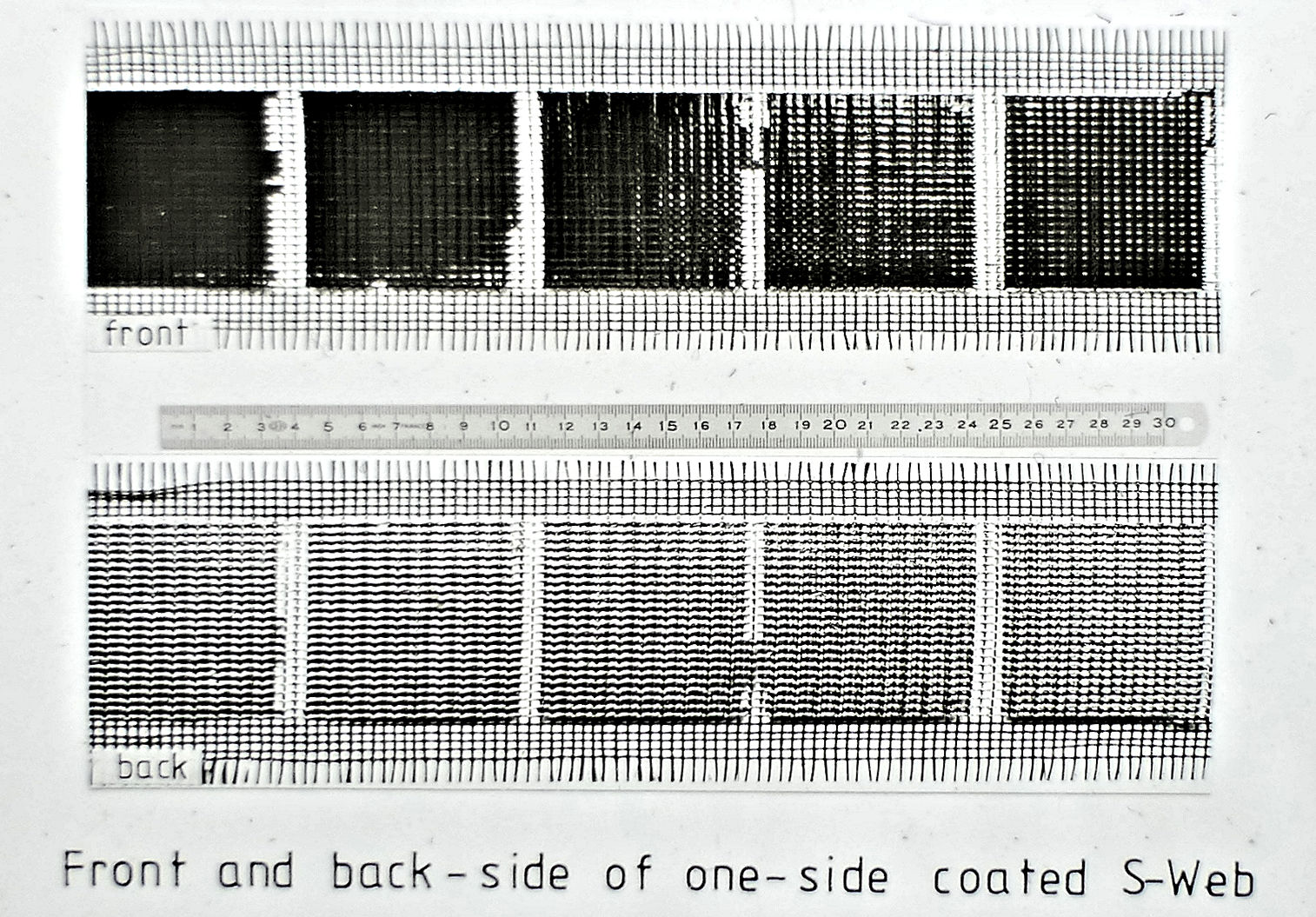

Fig. 5 in publication 56
Also used in various reports

The pictures from the full paper (ref. 22) follow

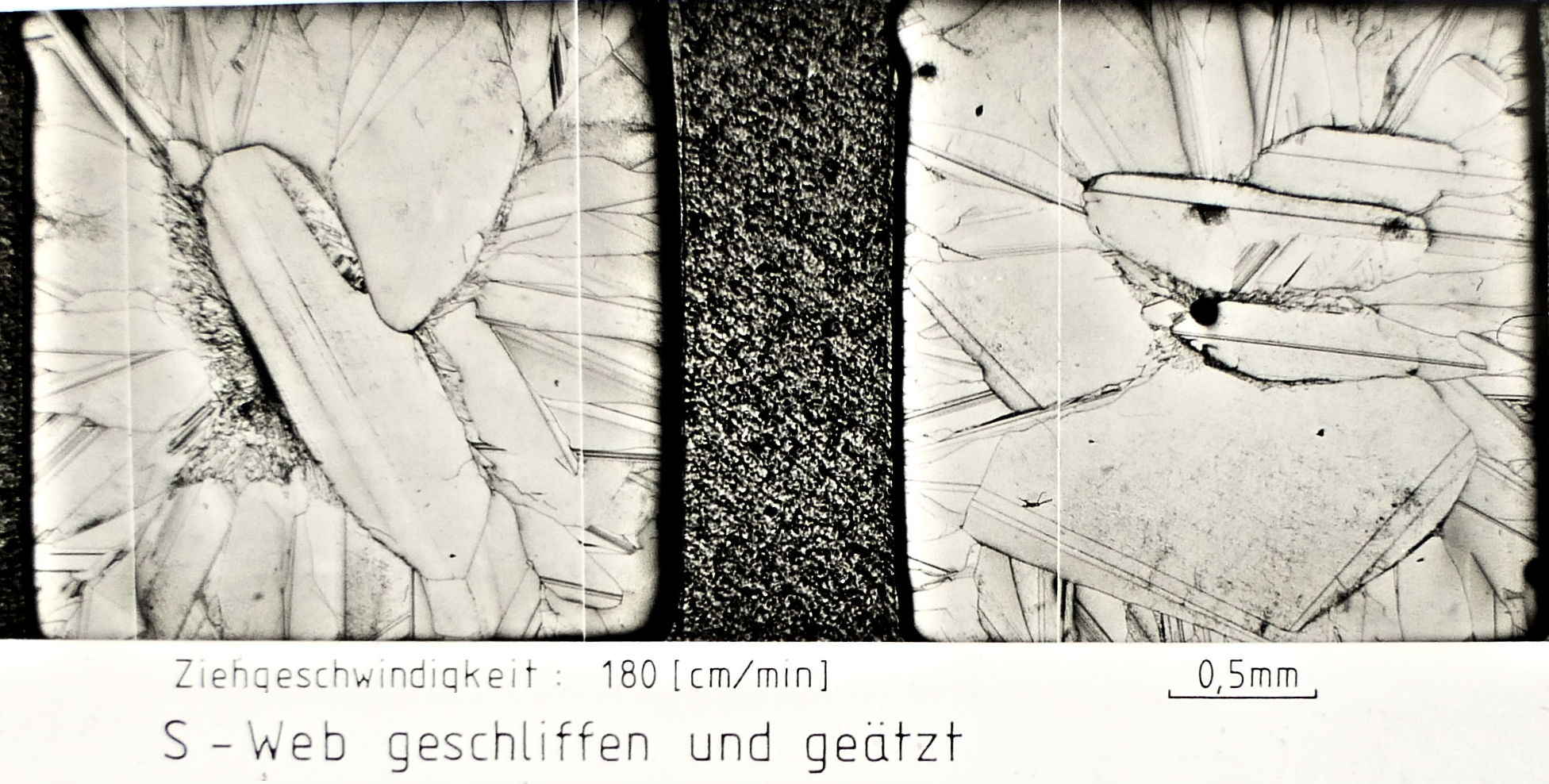

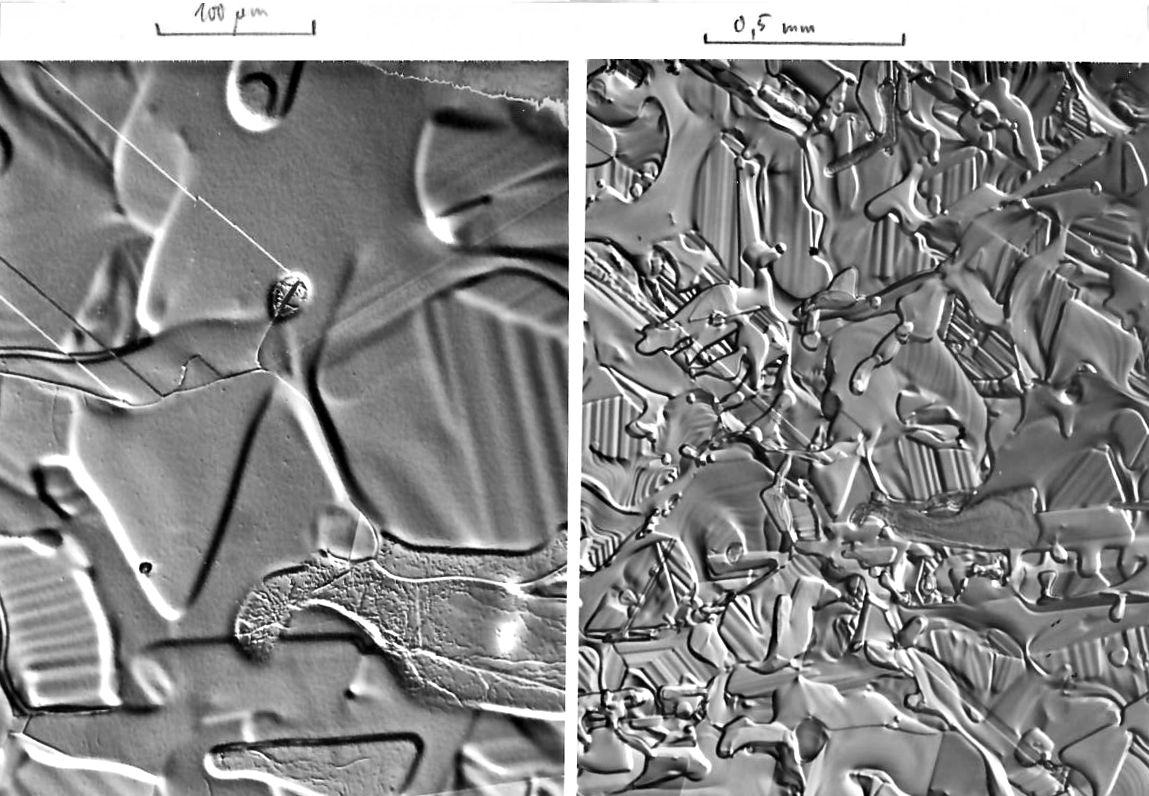

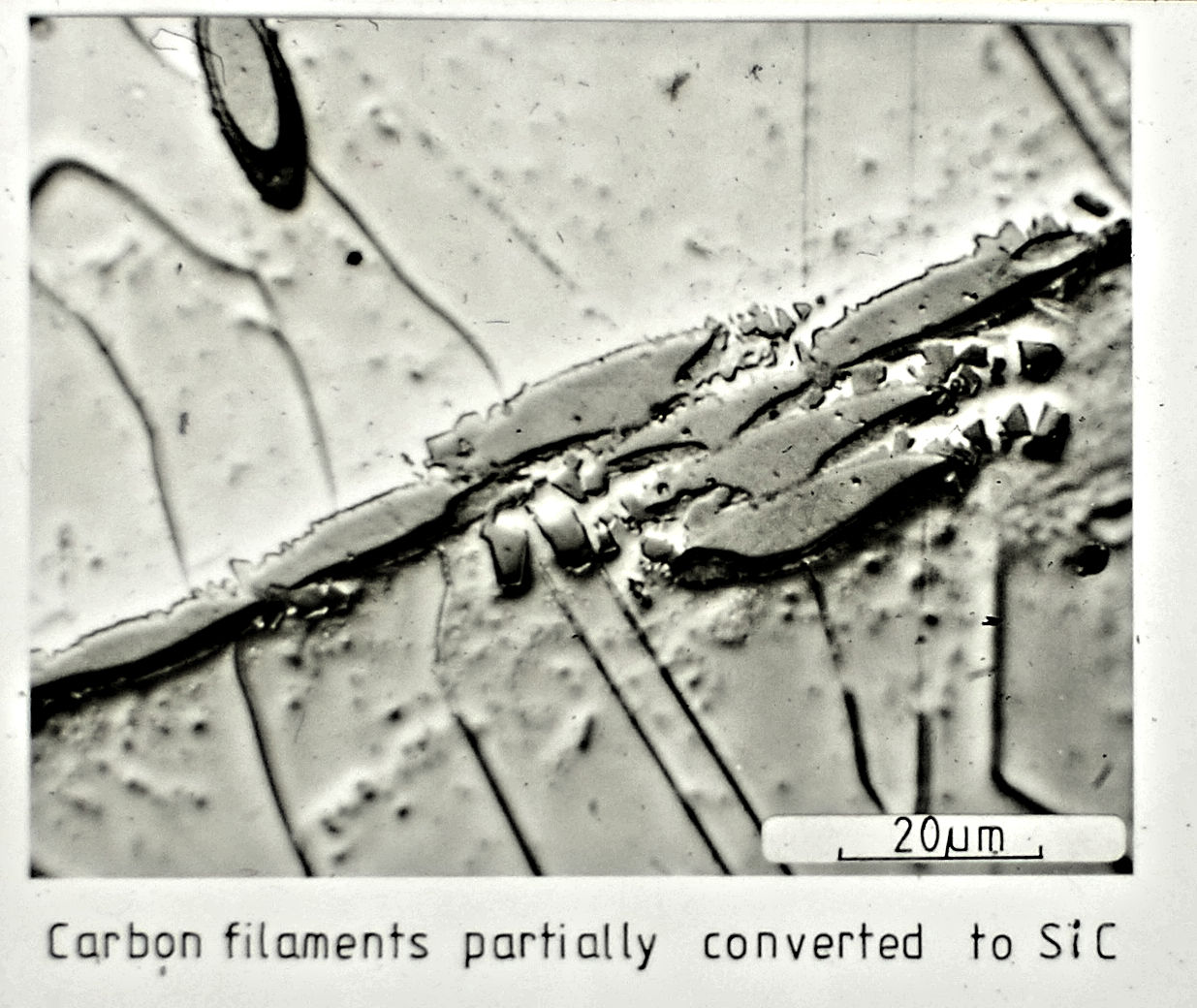

S-Web, solar Si
Fig. 6 in publication 56
Also used in various reports

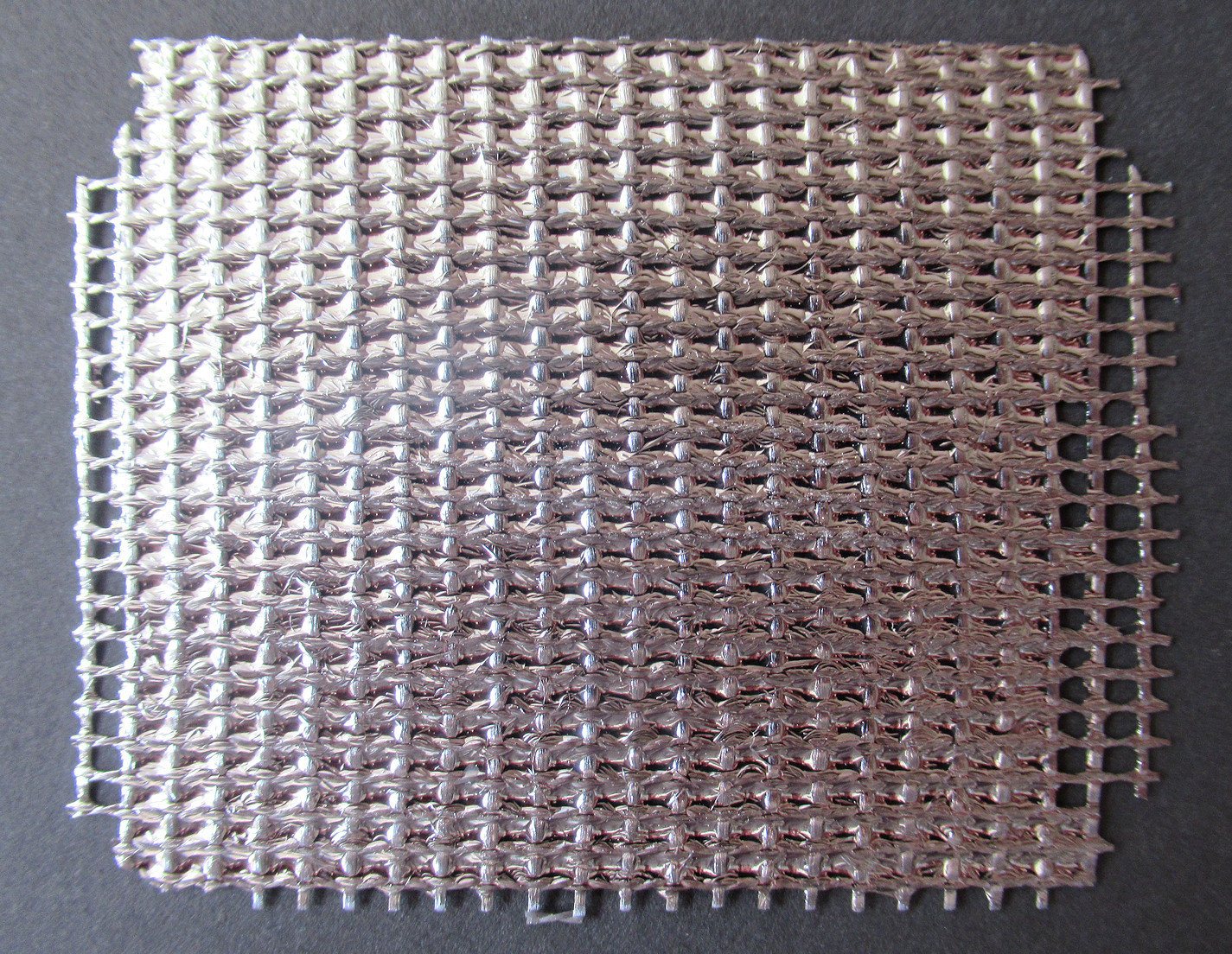

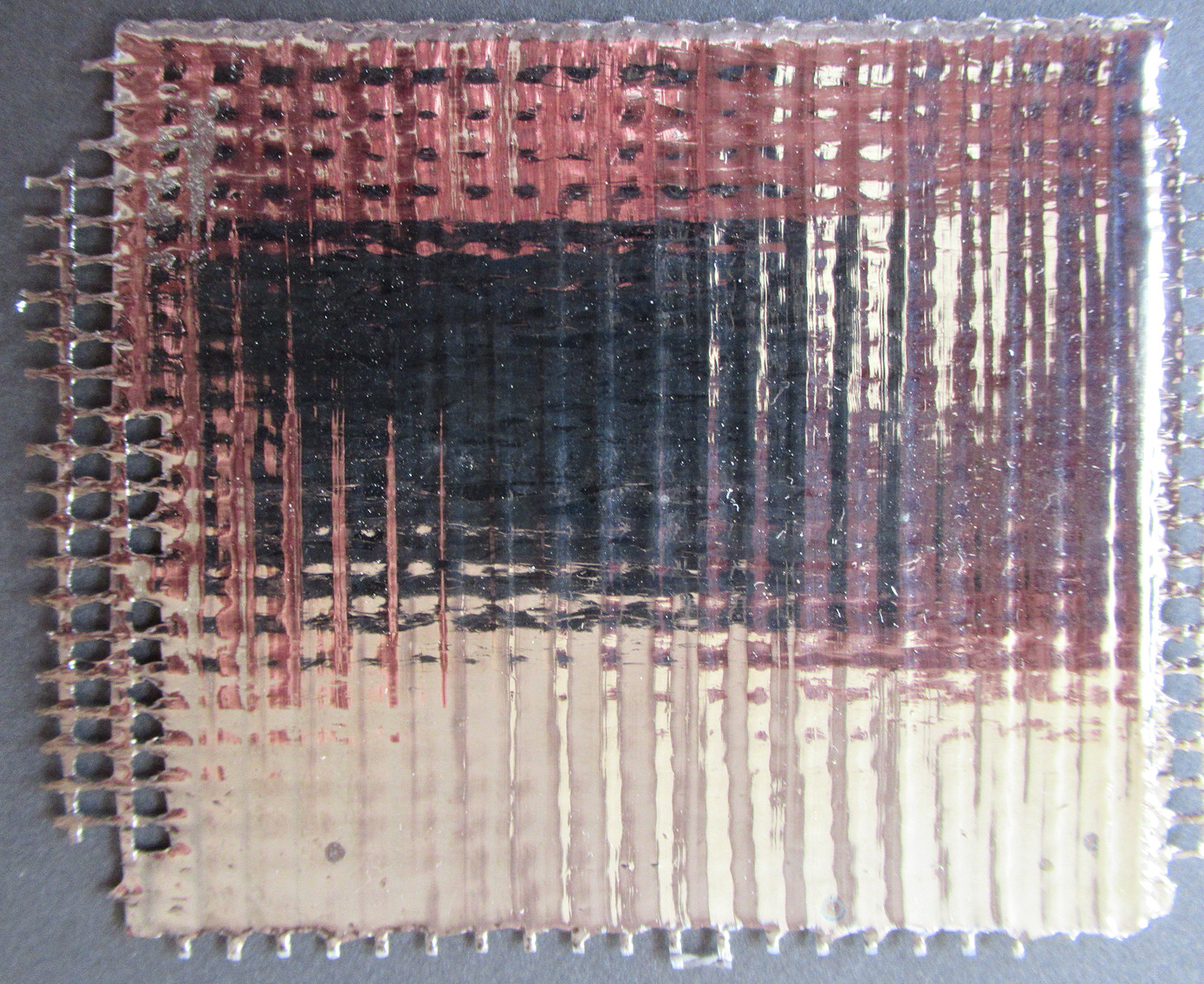

I still (in 2024) own one piece of this (or a similar) S-Web. It may well be the last survivinfg S-Web example. Here are (bad) pictures.


S-Web solar Si
S-Web solar Si
The last survuvuing S-Web (?)

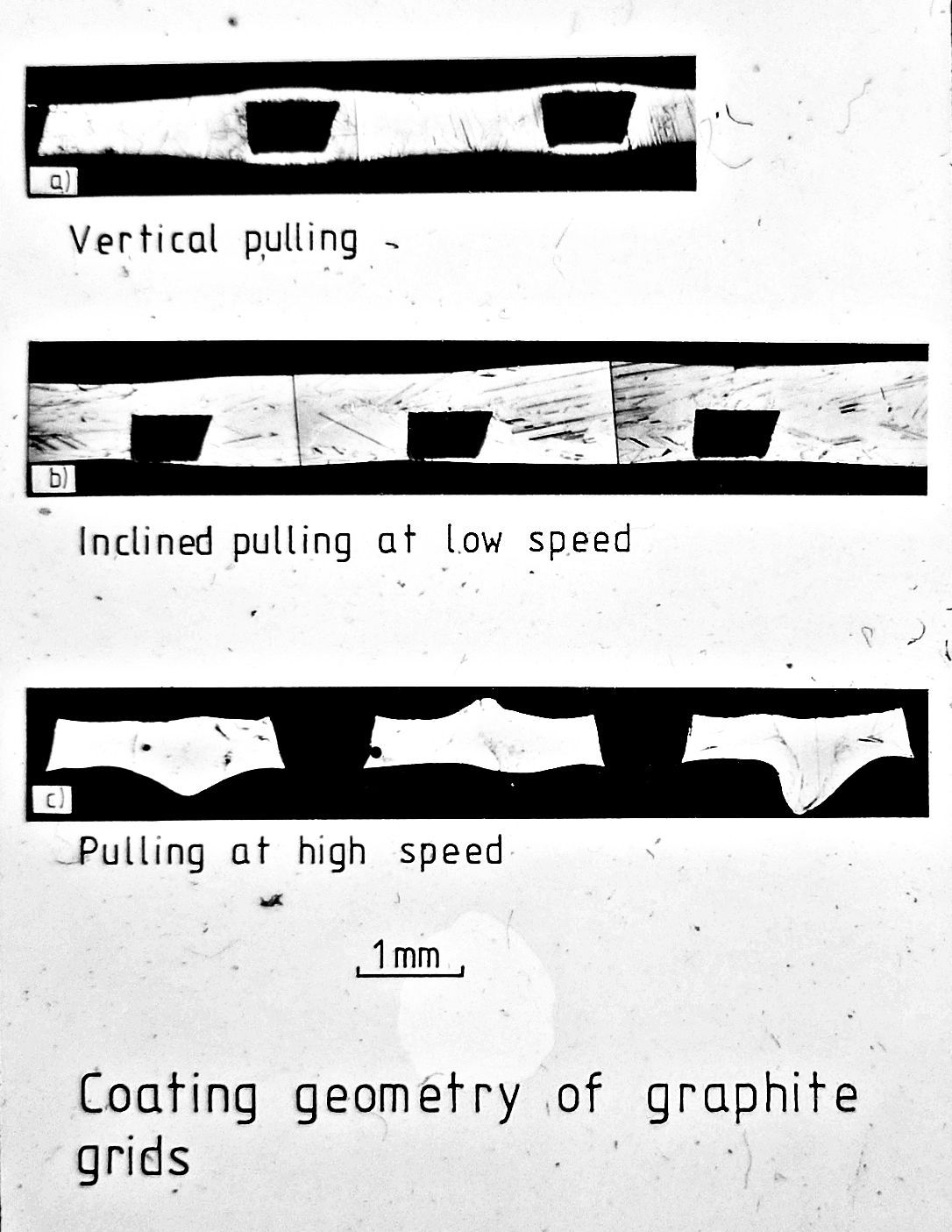

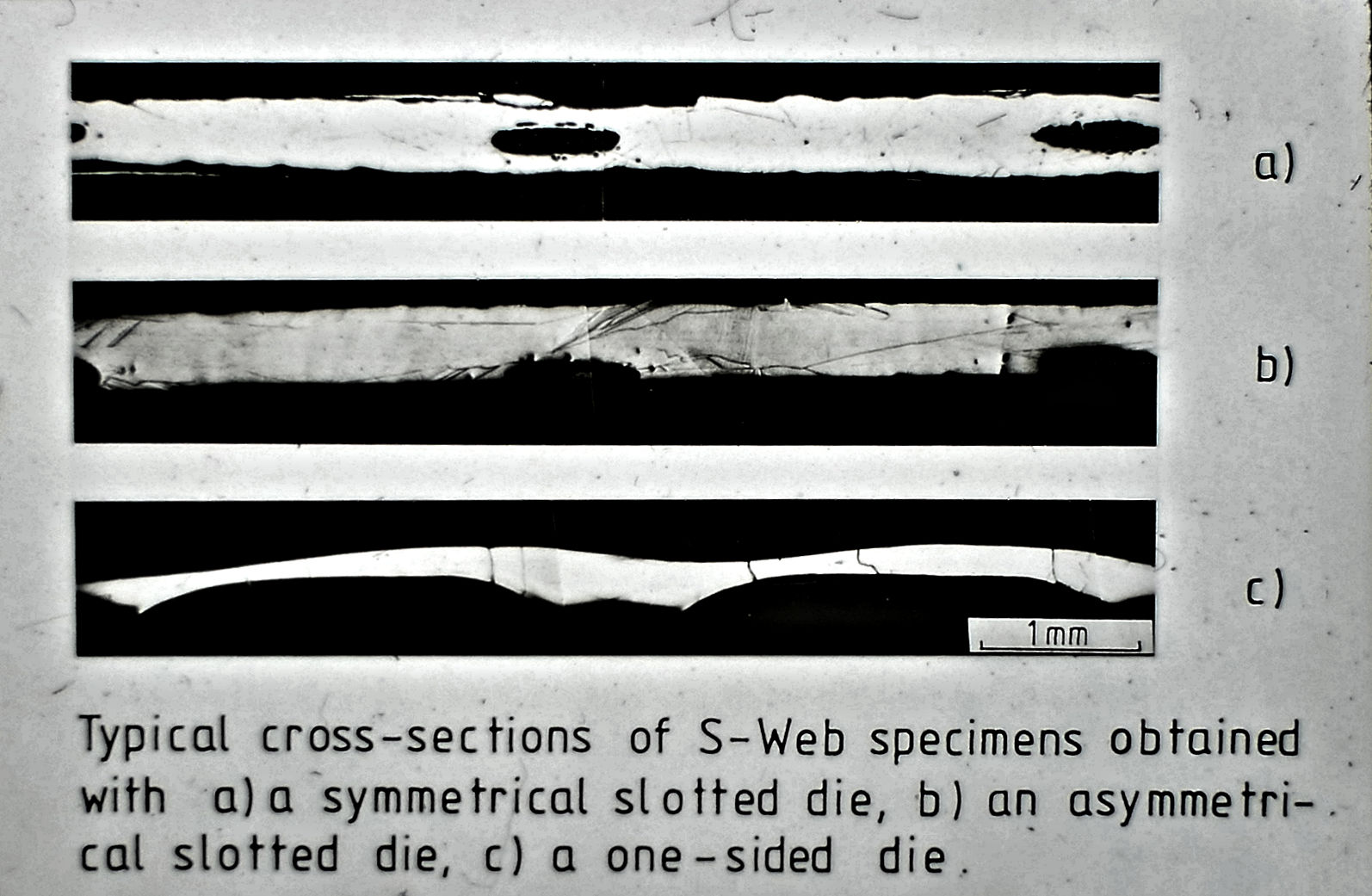

S-Web, solar Si
Fig. 7 in publication 56. Wrong figure caption there
Also used in various reports

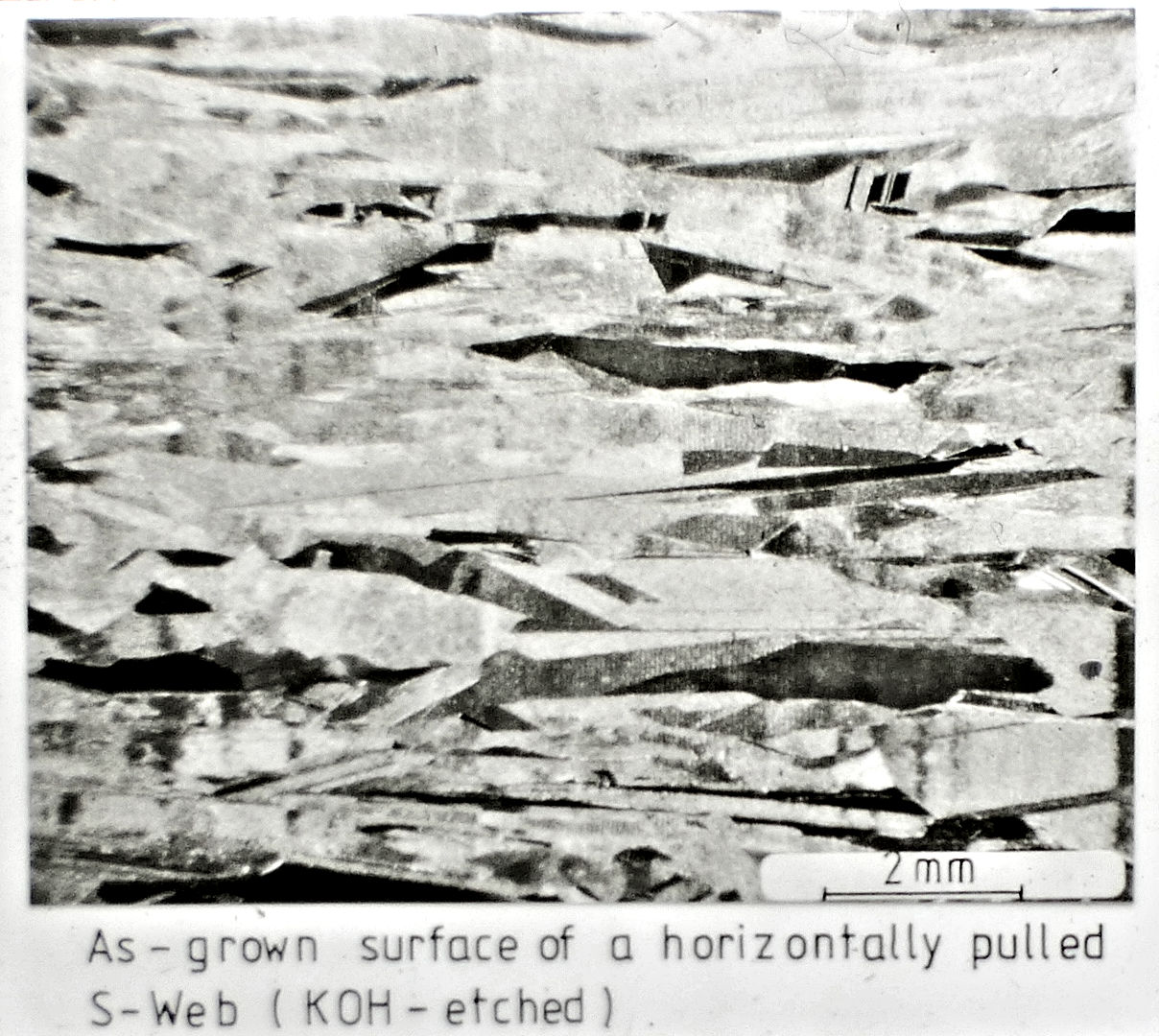

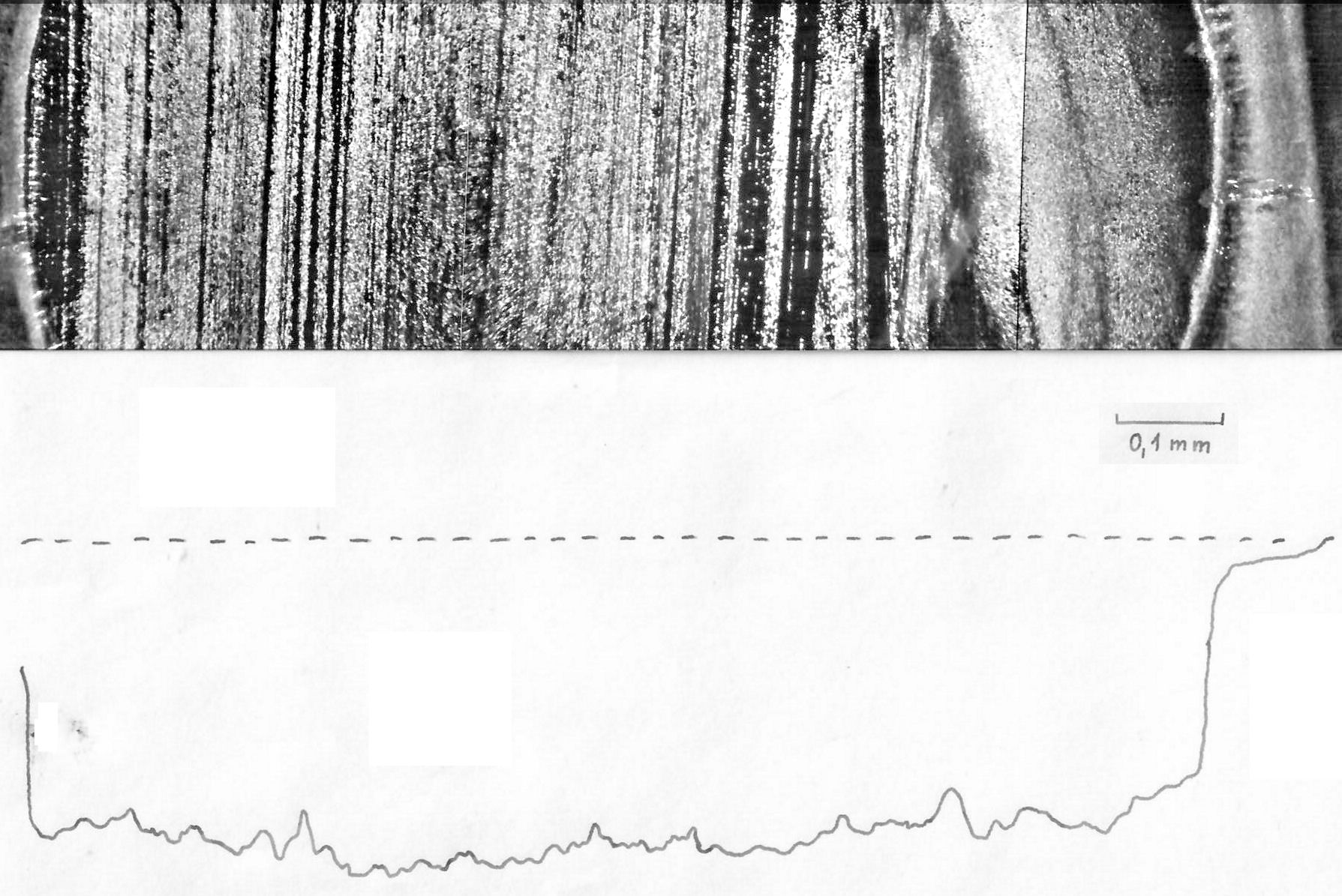

S-Web, solar Si
Fig. 8 in publication 56. Wrong figure caption there
Also used in various reports

Now the pictures for article 55: A high-speed characterization technique for solar silicon


Electrochemical analytics for Si
Fig. 3 in publication 55

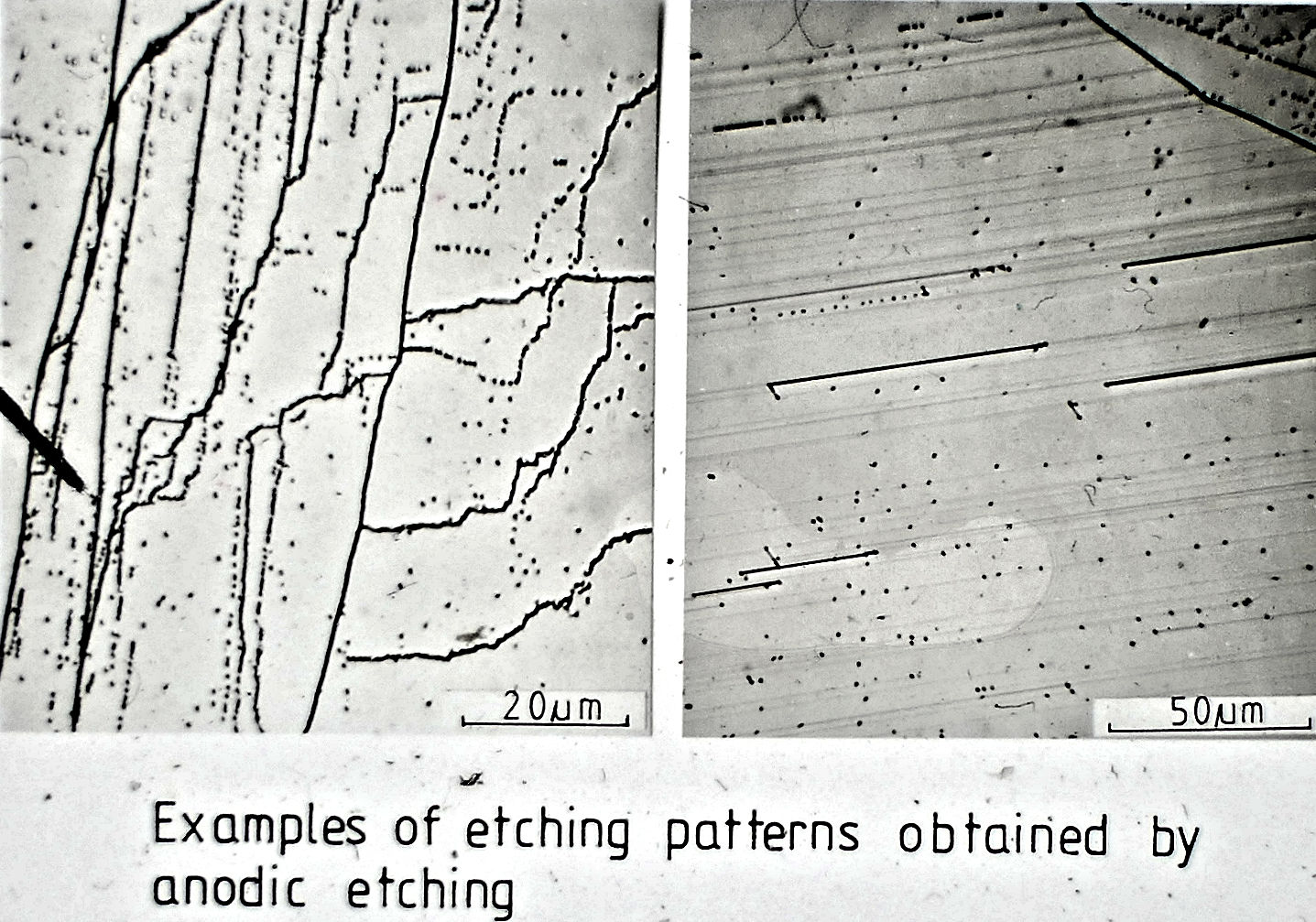

Examples of etching-patterns obtained by anodic etching. The right-hand micrograph demonstrates pronounced differences
in the etching behavior of twin-related boundaries most likely related to differences in the electronic activity of the defects.

Electrochemical analytics for Si
Fig. 5 in publication 55

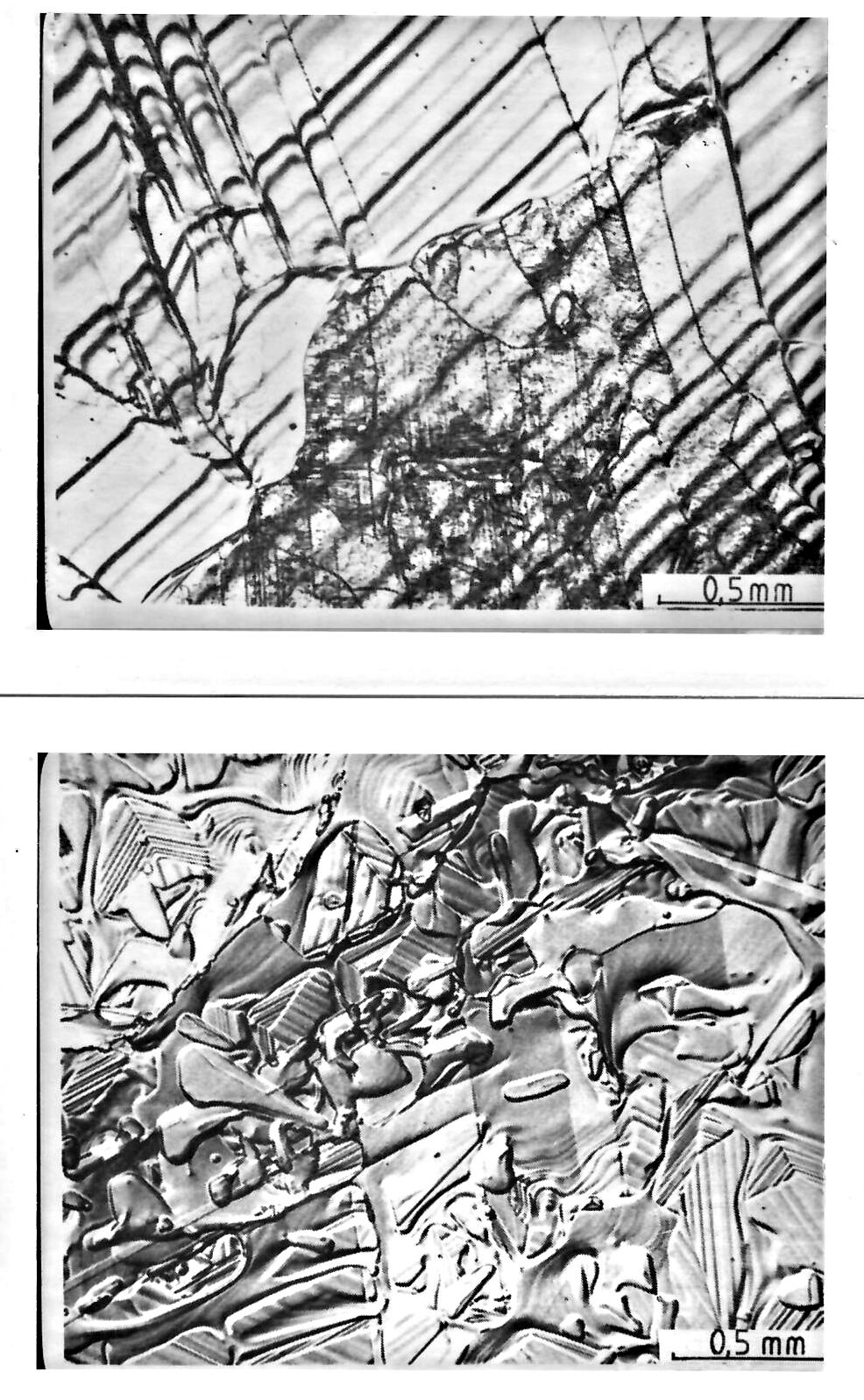

Etching pattern of n-type poly-Si obtained with illumination. (top) and in the dark (bottom)

Finally some auxiliary pictures to S-Web and characterization:

S-Web, anodic etching
S-Web, anodic etching
Anodically etching n-type Si under illumination
Some of the photo generated holes recombined at grain doctrinaires and other defects, locally reducing the currant available for etching.
Grain boundaries therefore became visible as “walls” with a thickness directly related to the diffusion length / life time of the minority carriers.
With interference microscopy (lower picture, right) one could measure the diffusion length quite nicely


S-Web, anodic etching
Etching n-type Si in the dark
In this case surface-near defects act as generation centers, generating more carries.
The reverse or leakage current that produced etching thus mirrored the generation life time,
The pictures prove that anodic etching has a large and still mostly untapped potential for defect analysis. .


S-Web, anodic etching
"Anodic" Laser scan across n-type Si
Just as good as an EBIC scan or a Laser scan across the finished solar cell (“LBIC”) but much simpler. While you scanned the leakages current produced a picture of the defects situation in the sample.


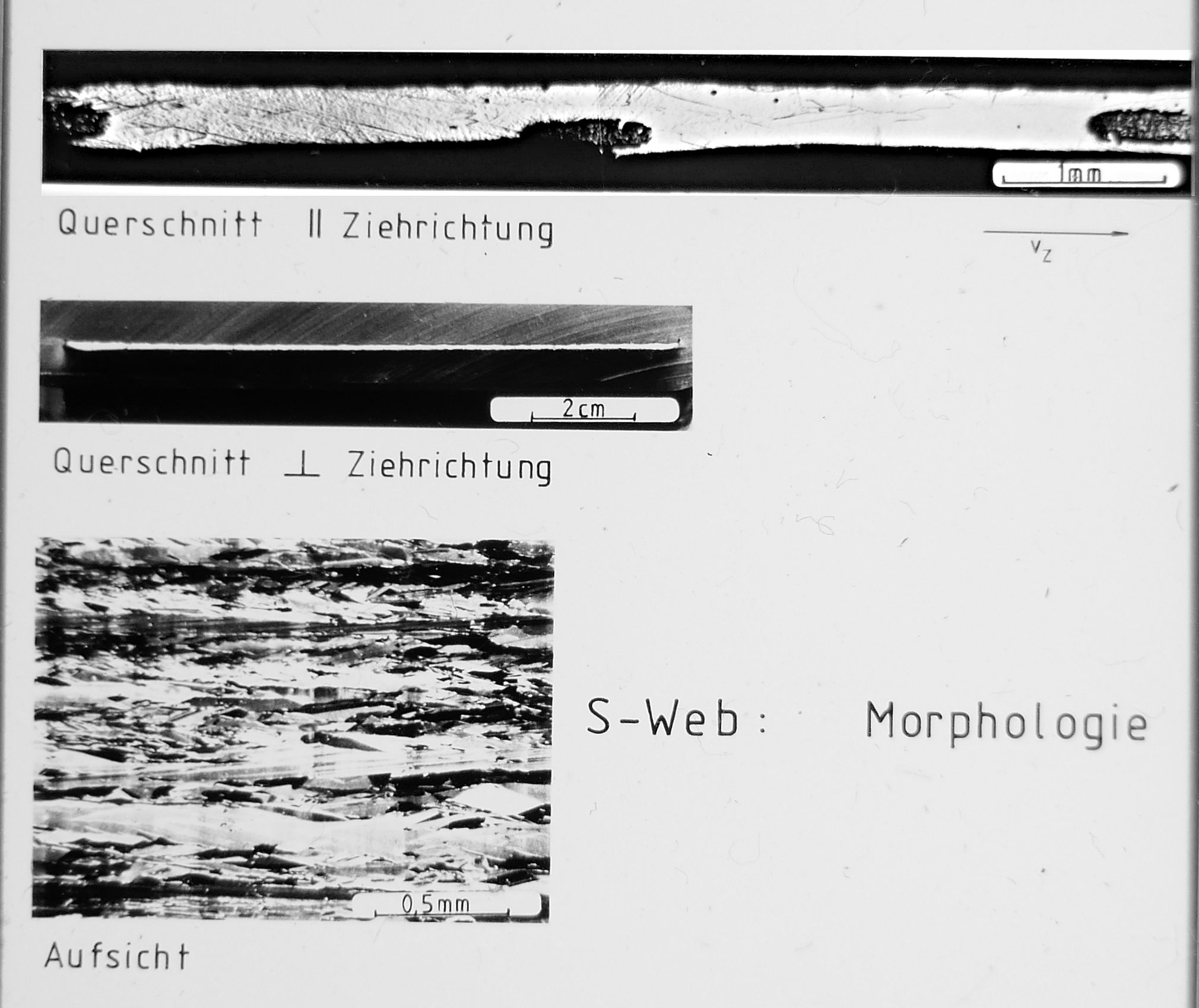

S-Web, anodic etching
Picture in report 7
Remarkable because it shows .hat we could produce a S-Web as imagined - but not a high pulling speeds


S-Web, anodic etching
Si crystallizing in a graphite cell Used in report 1
Crystallizing liquid Sui membranes pulled out in the openings of a mesh (here a graphite grid) was of some interest.


S-Web, anodic etching
Si crystallizing in a graphite cell
As above but top view..

Finally one picture relating to all the other ways projected for making plate Si. Here it is sintering.
We never got much from melt spinning project.


Sintered Si
Sintered Si plated.

The sintering group did eventually produce some Si sheets or plates. They starred with p-type Si powder
but produced n-type sheets with a microstructure clearly not conducive to making solar cells.


With frame With frame as PDF
