Pictures to: 4. IBM T.J. Watson Research Center; 4.1 TEM of Silicon

	Pictures to: 4. IBM T.J. Watson Research Center
	4.1 TEM of Silicon - Silicide Interfaces Publication 43
	What follows are rthe pictures to publications 43 (Transmission electron microscopy investigation of silicide formation on slightly oxidized silicon substrates) I alos add some auxiliary pictures

Fig. 1 in Publication 3

FIG.1. (a; left) Pd₂Si film on theclean substrate. (b) Pd₂Si filmon the oxidized substrate.

Fig. 2 In Publication 3

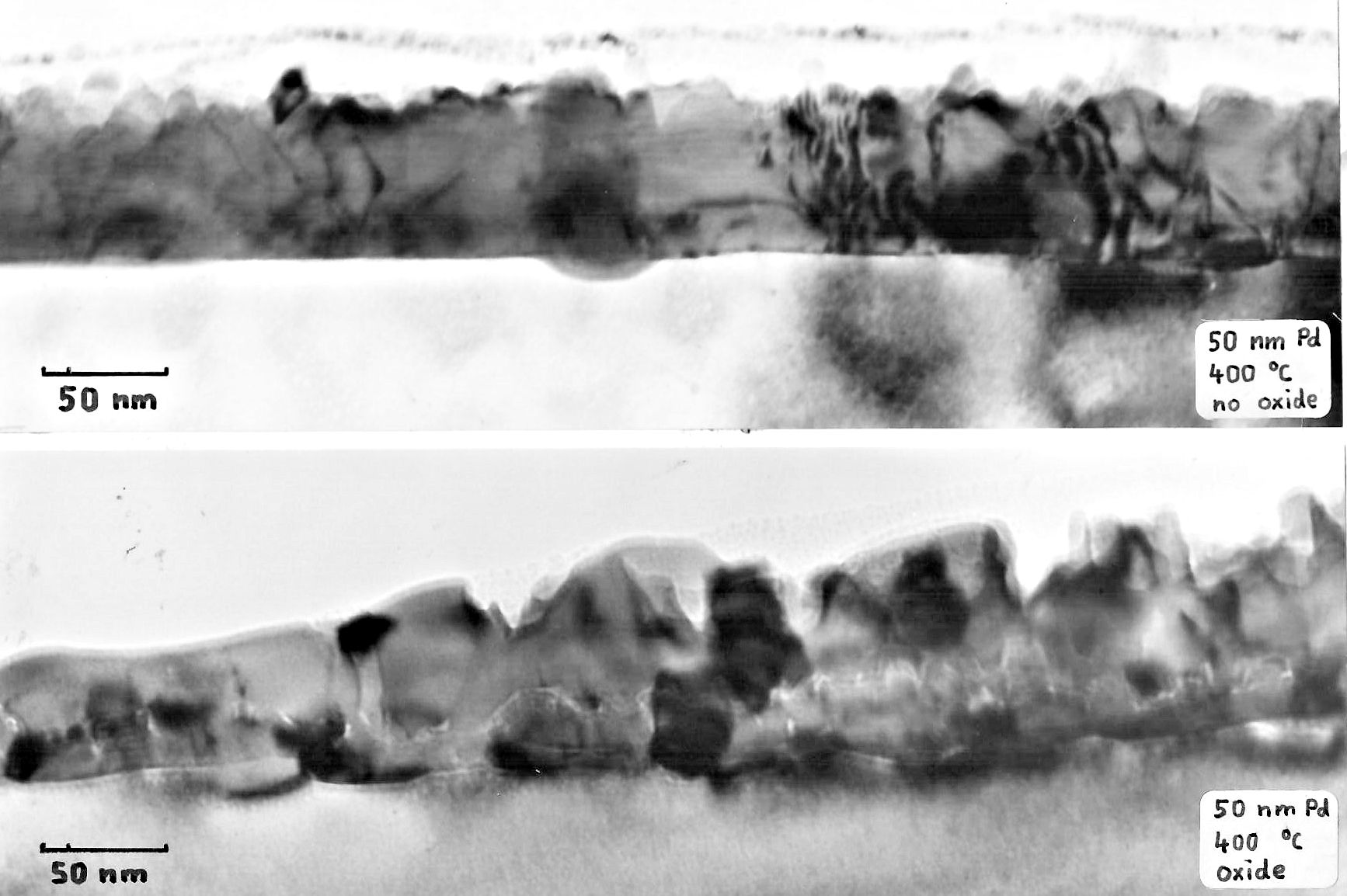

FIG.2. (a) Cross-sectional view of Pd ₂Si on the clean substrate. (b) Cross-sectional view of PtSi on the oxidized substrate.

Fig. 3 In Publication 3

FIG. 3. Band of oxide remnants (bettween arrows at about 1/4-1/3 from thesilicide-Si interface) in Pd2Si on a {I00} oriented clean substrate

Fig. 6 in Publication 3

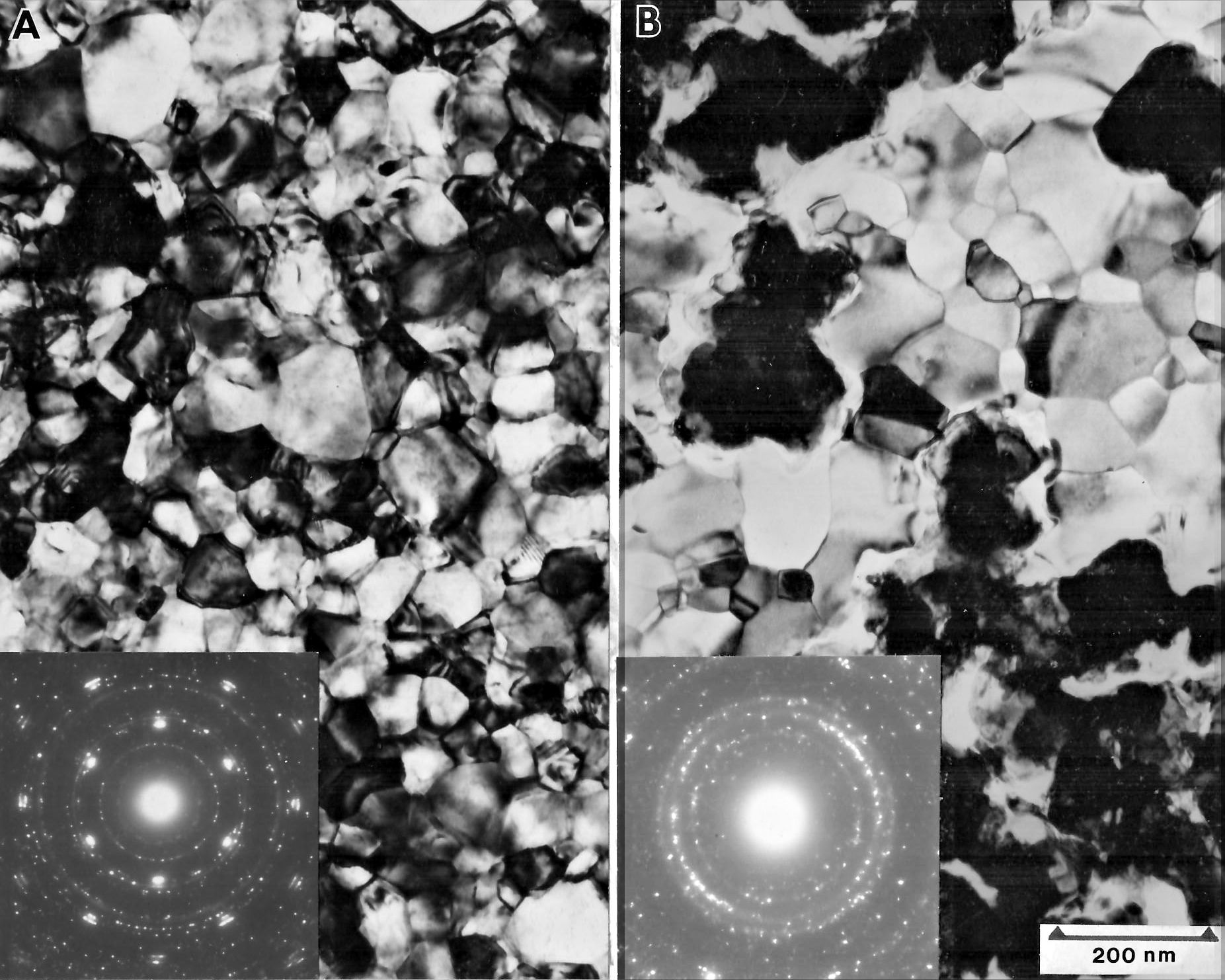

FIG. 6. (a) PtSi on the clean sub-strate. (b) Unreacted Pt and PtSi onthe oxidized substrate

Fig. 7 in Publication 3.

FIG. 7. (a) Cross-sectional view of PtSi on the clean substrate.(b) Cross-sectiooal view cf the unreacted Pt and PtSi on theoxidized substrate. (c) Enlarged view of Fig. 7(b); note the bright band between the unreacted Pt and the Si substrate

Fig. 8 in Publication 3

FIG.8. PtSi formed by co-evaporation of Pt₆₇Si₃₃ on a clean substrate

With frame

Pictures to: 4. IBM T.J. Watson Research Center

4.1 TEM of Silicon - Silicide Interfaces Publication 43
