Pictures to: 3.4.1 Weak Beam Contrast of Stacking Faults in TEM

	Pictures to: 3.4.1 Weak Beam Contrast of Stacking Faults in TEM
	The set o f pictures contained in the publication follows:

Fig. 1. 1.

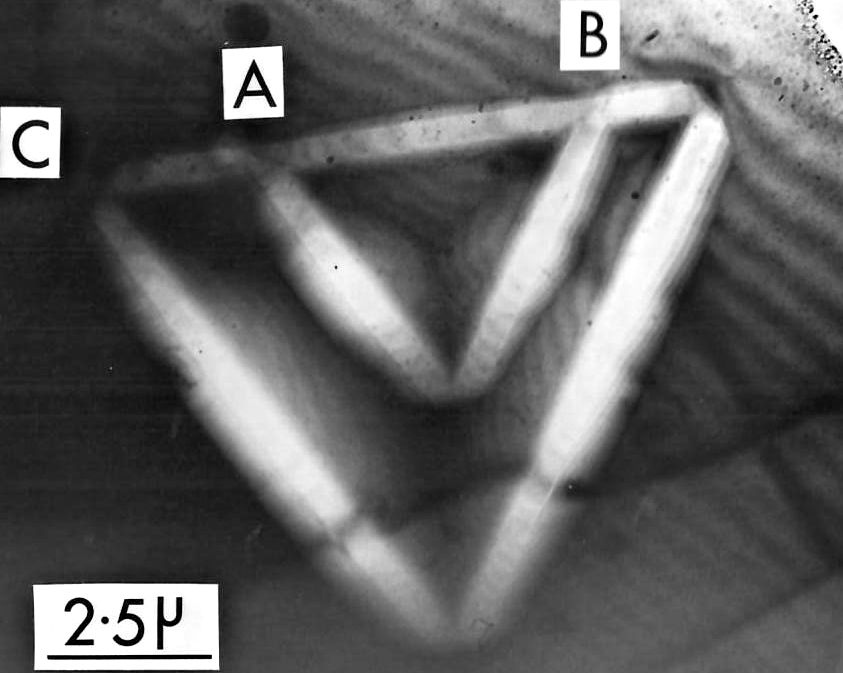

Low magnification micrograph of the stacking faults in silicon which are studied in detail.

Fig. 2 .

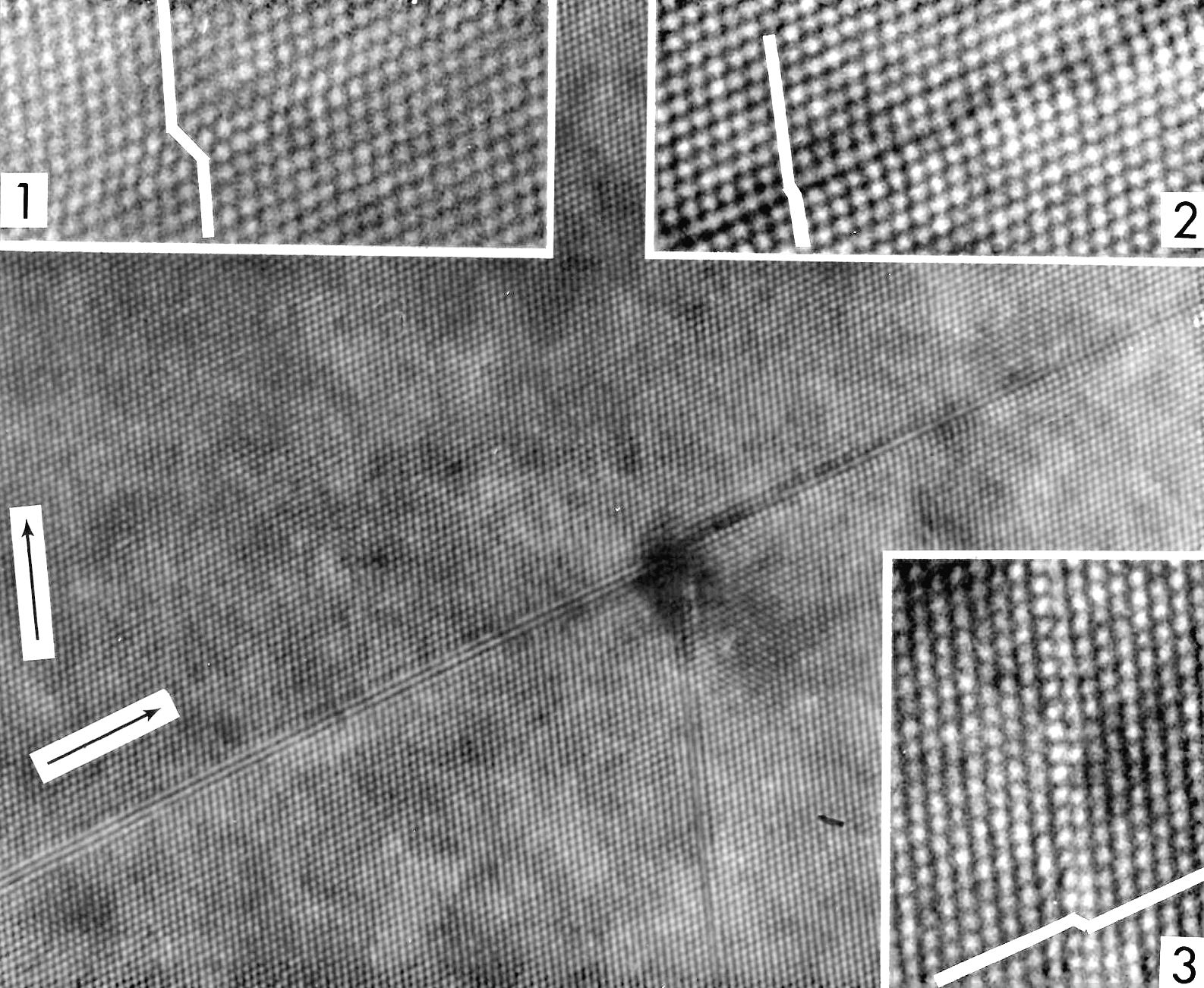

Lattice image of stacking faults at area B in Fig. 1. Alrrows denote traces of {111} planes.

Auxiliary picture to Fig Fig. 2

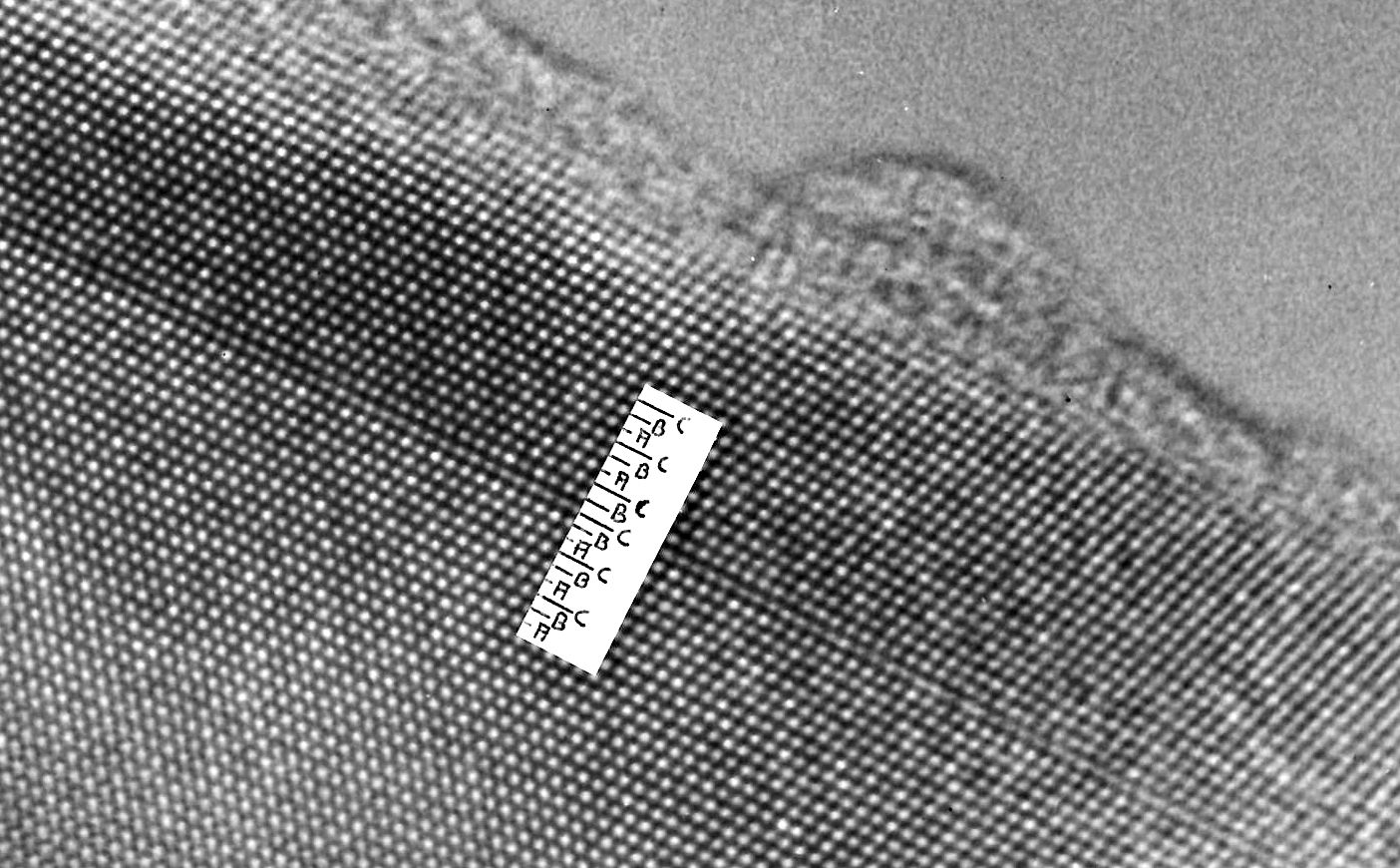

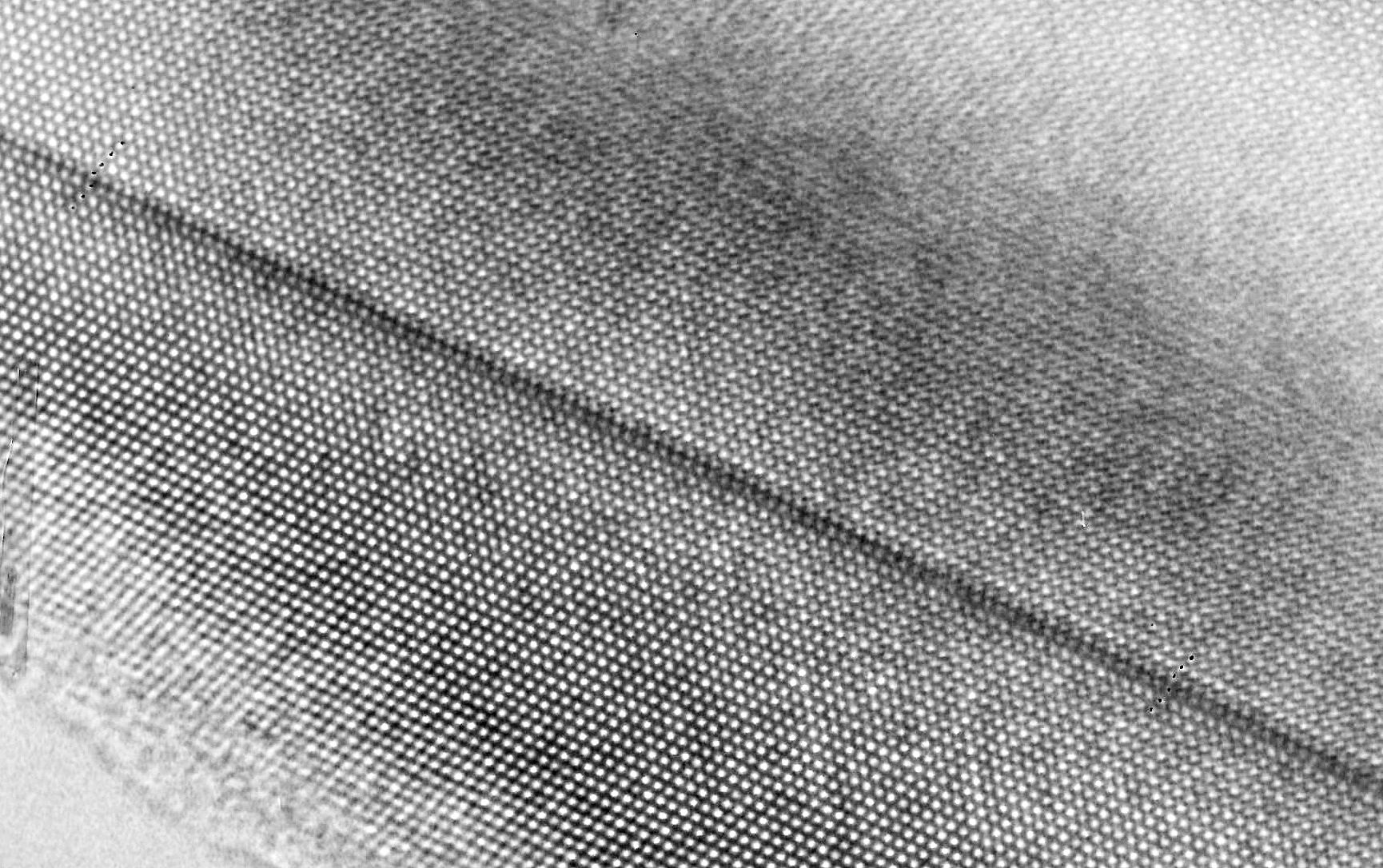

Showing parts of the stacking fault and illustrating the resolution one could achieve with the Elmiskop 102

As above; auxililiary picture to Fig. 2

Fig. 3 .

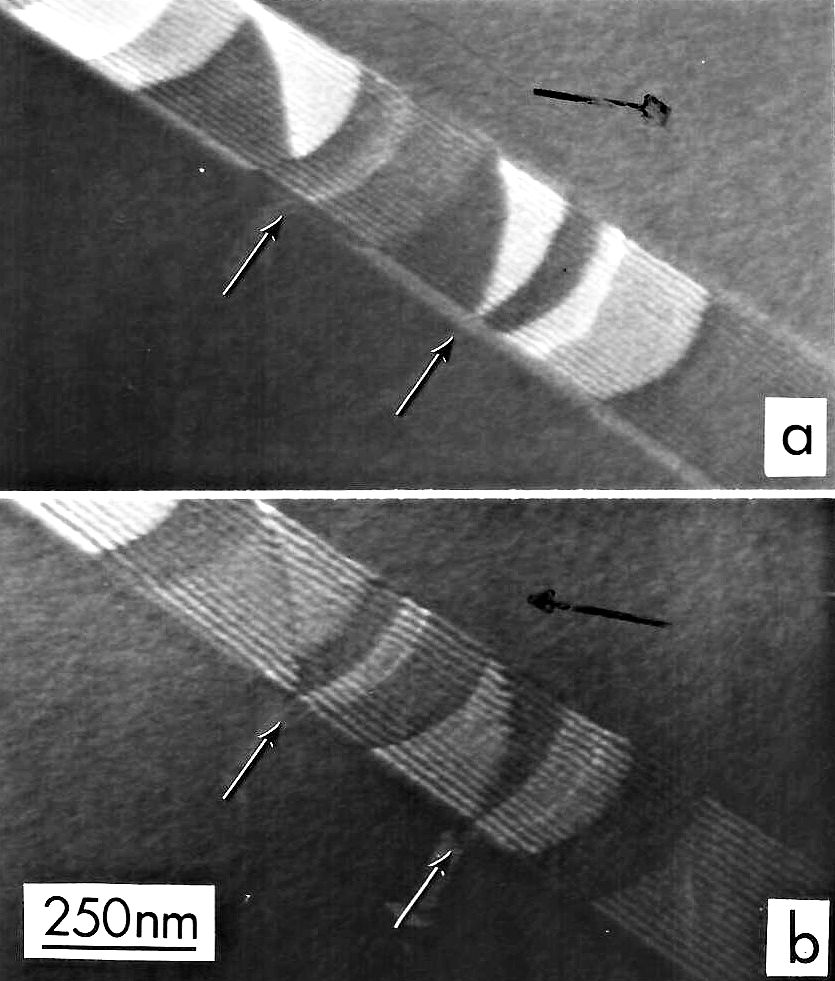

Weak·beam image of area B. Arrows in this and in the following pictures indicate diffraction vectors. g={220} in this case

Fig. 4 .

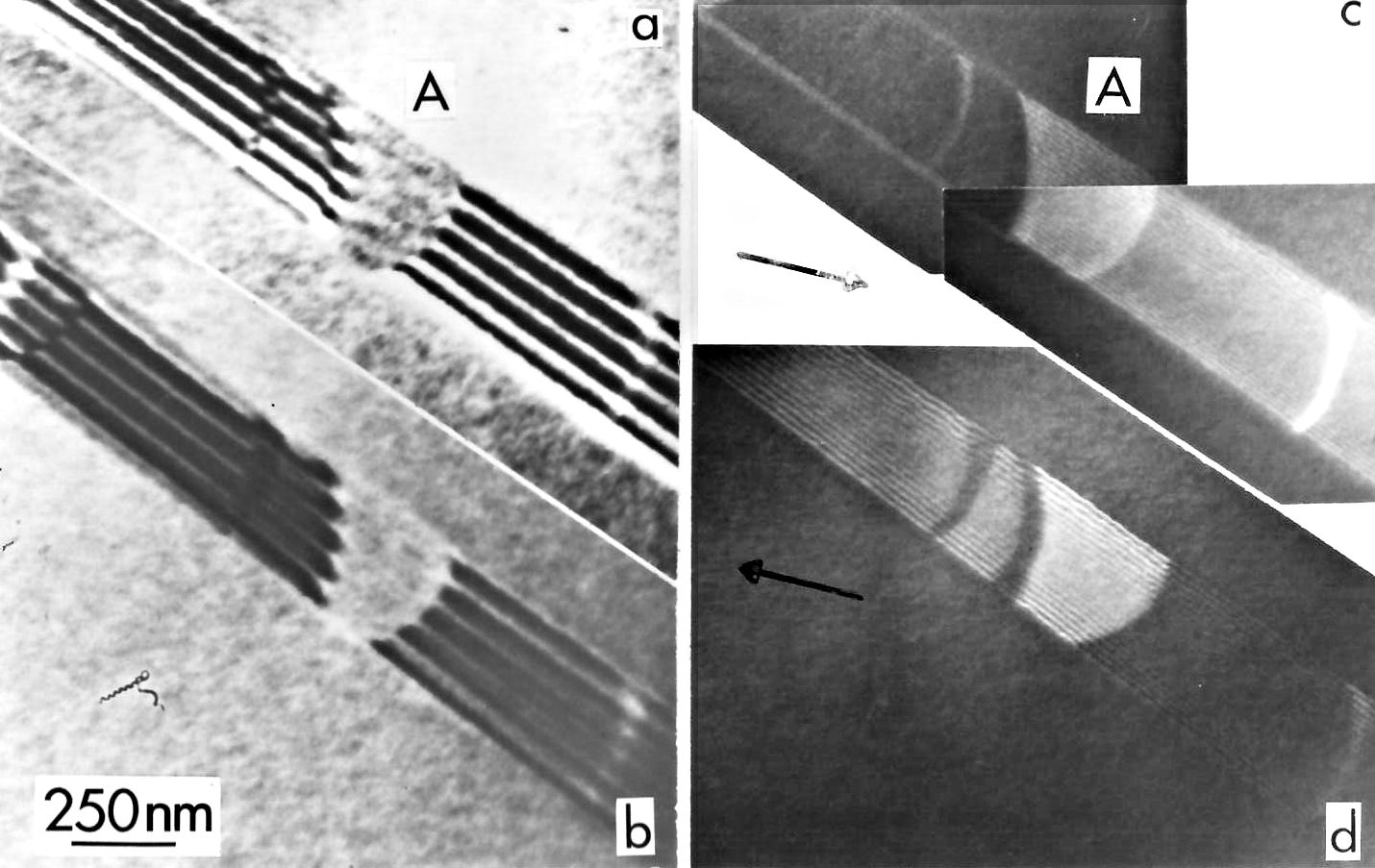

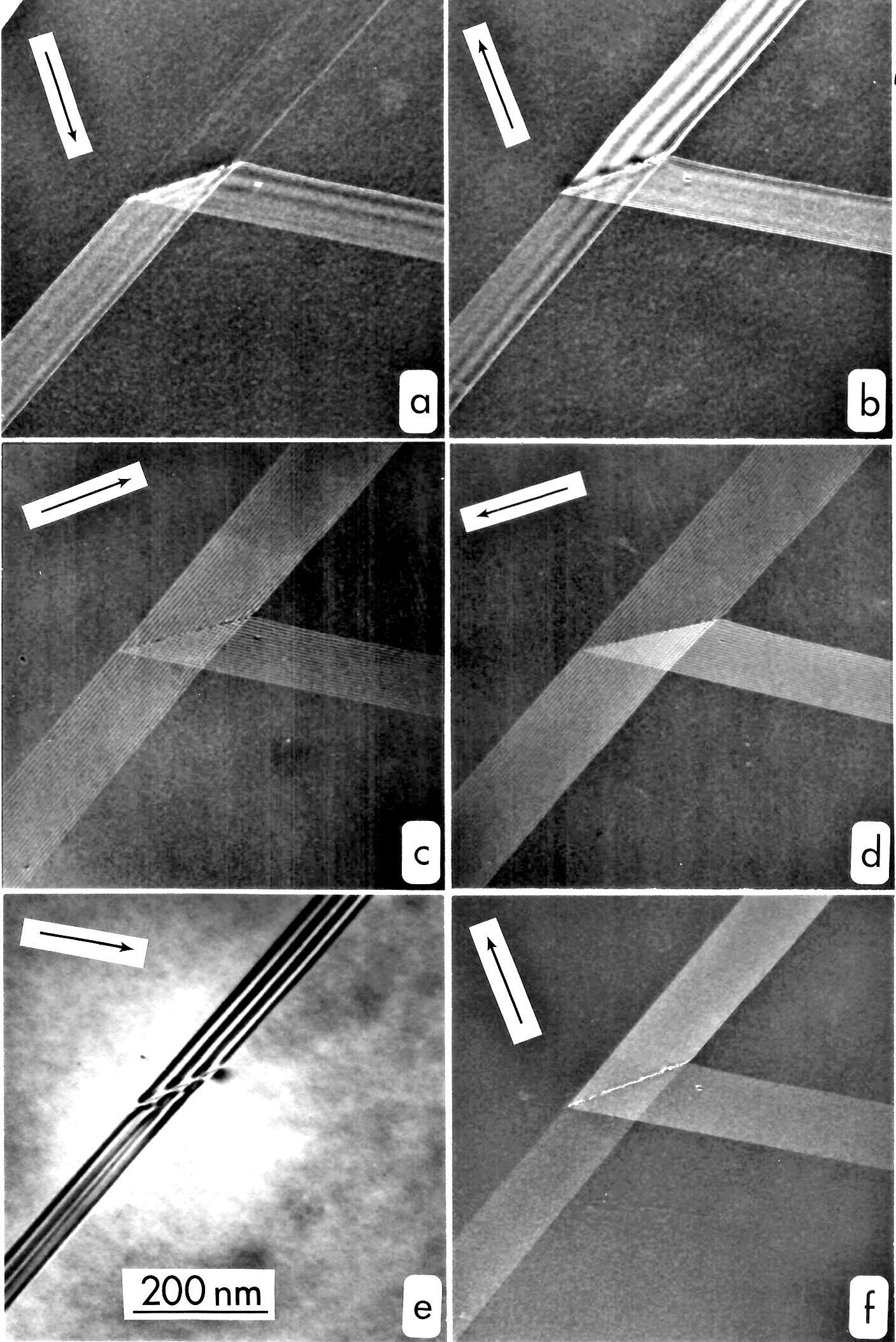

Area A imaged with different diffraction vectors. a), b), c), f): g={220}, c), d): g={lll}. For details see text

Fig. 5.

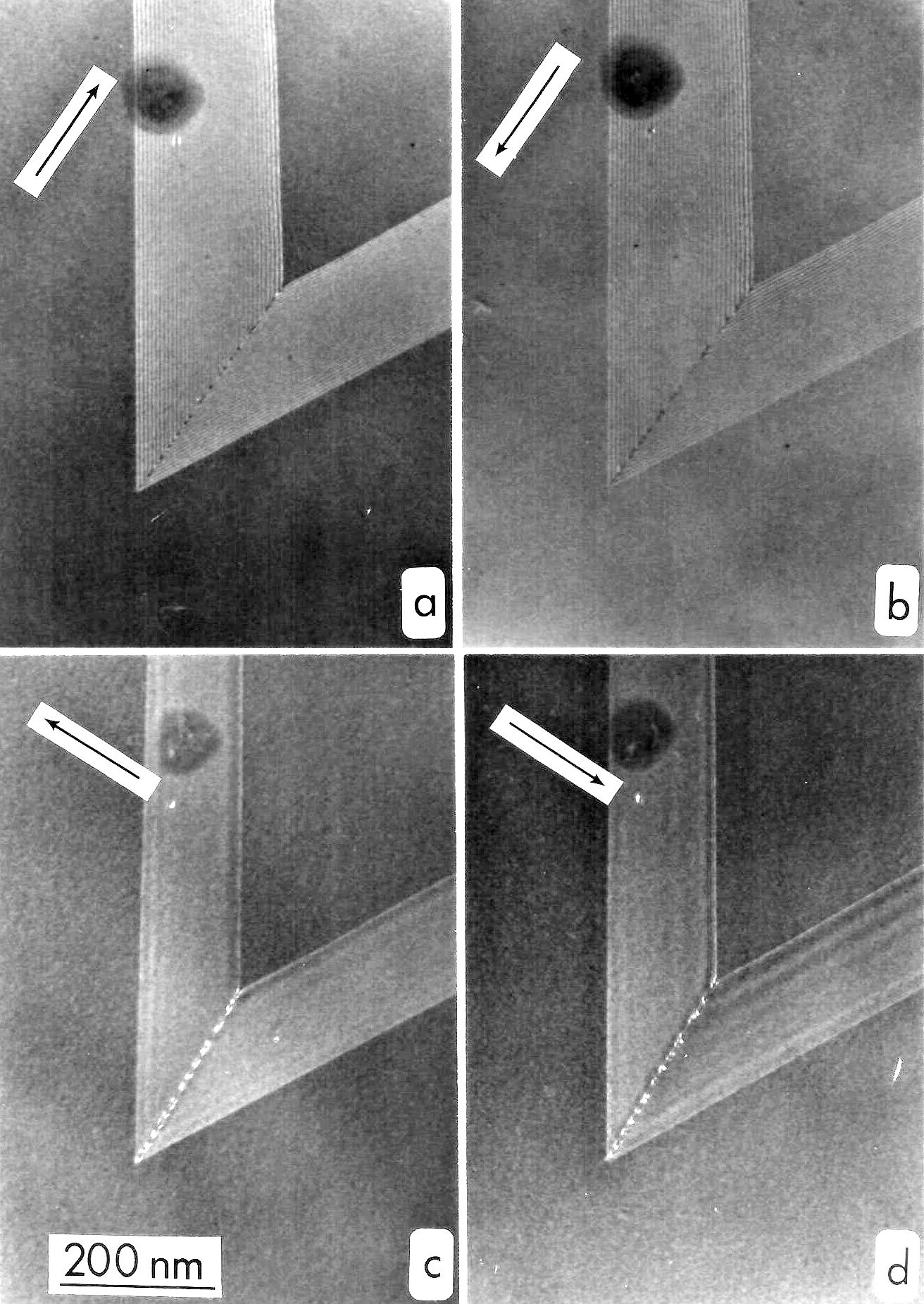

Area C imaged with different diffraction vectors. a), b): y={lll}; cl, d): g={220}

Fig. 6 This is a picture from B. Carter.

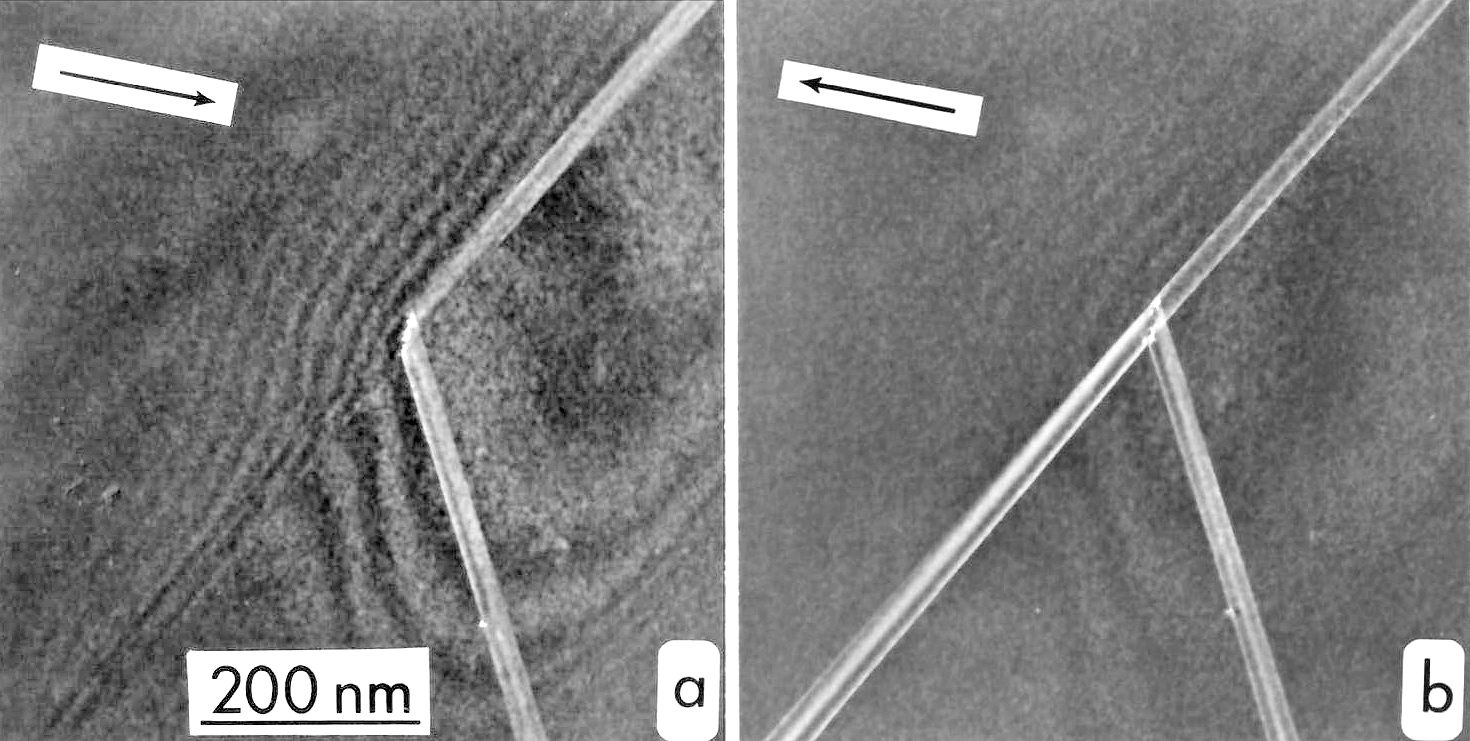

Overlapping stacking faults in stainies steel. The small arrows mark identical areas; g={Ill}

Fig. 7.
This is a picture from B. Carter.
Overlapping stacking faults in stainless steel. The small arrows mark identical areas; g={Ill}

Fig. 8.
This is a picture from B. Carter.

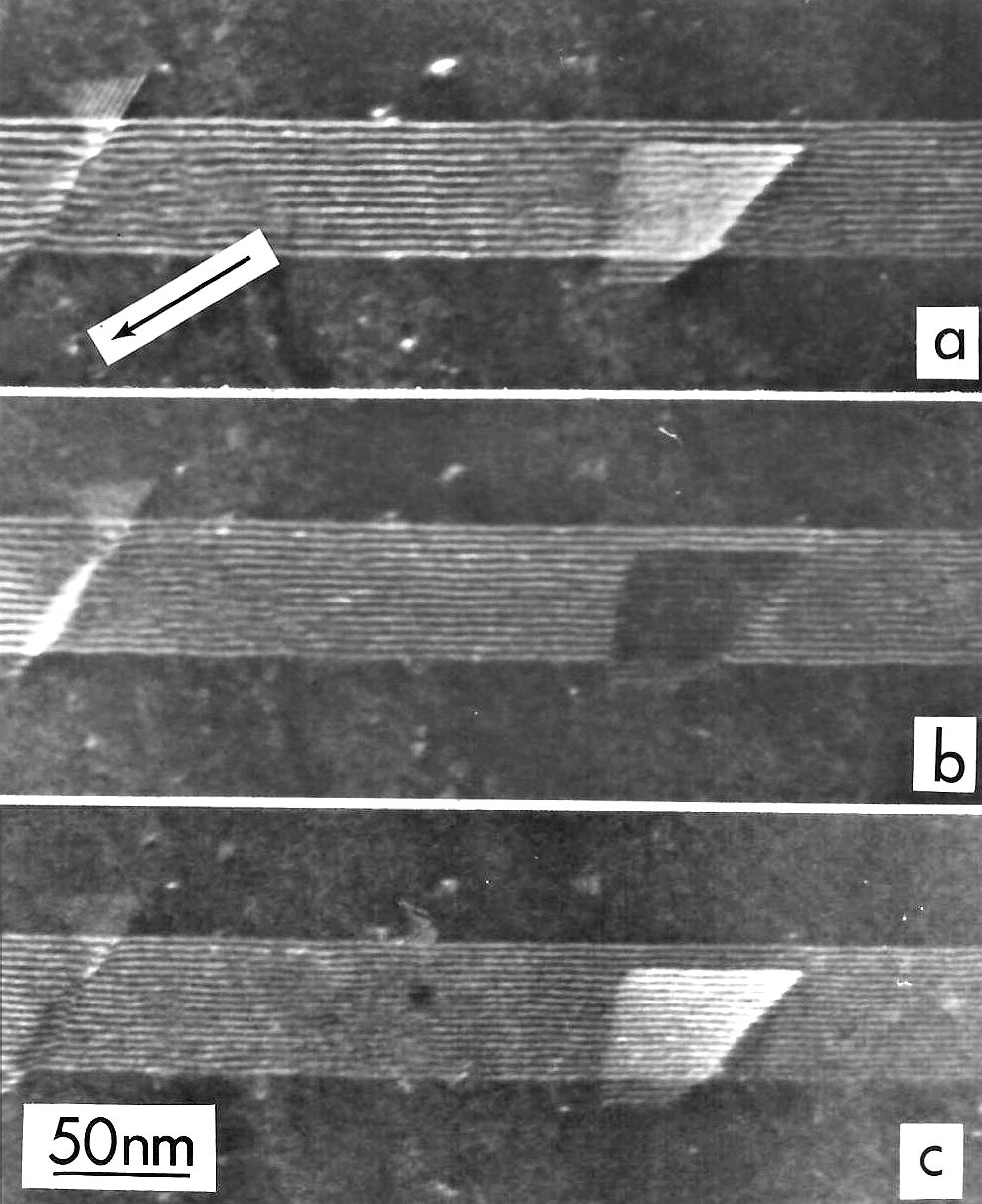

Overlapping stacking faults in CuAI alloy. The magnitude of the excitation error s increases from a) to c; G={lll}

Fig. 9.
This is a picture from B. Carter.

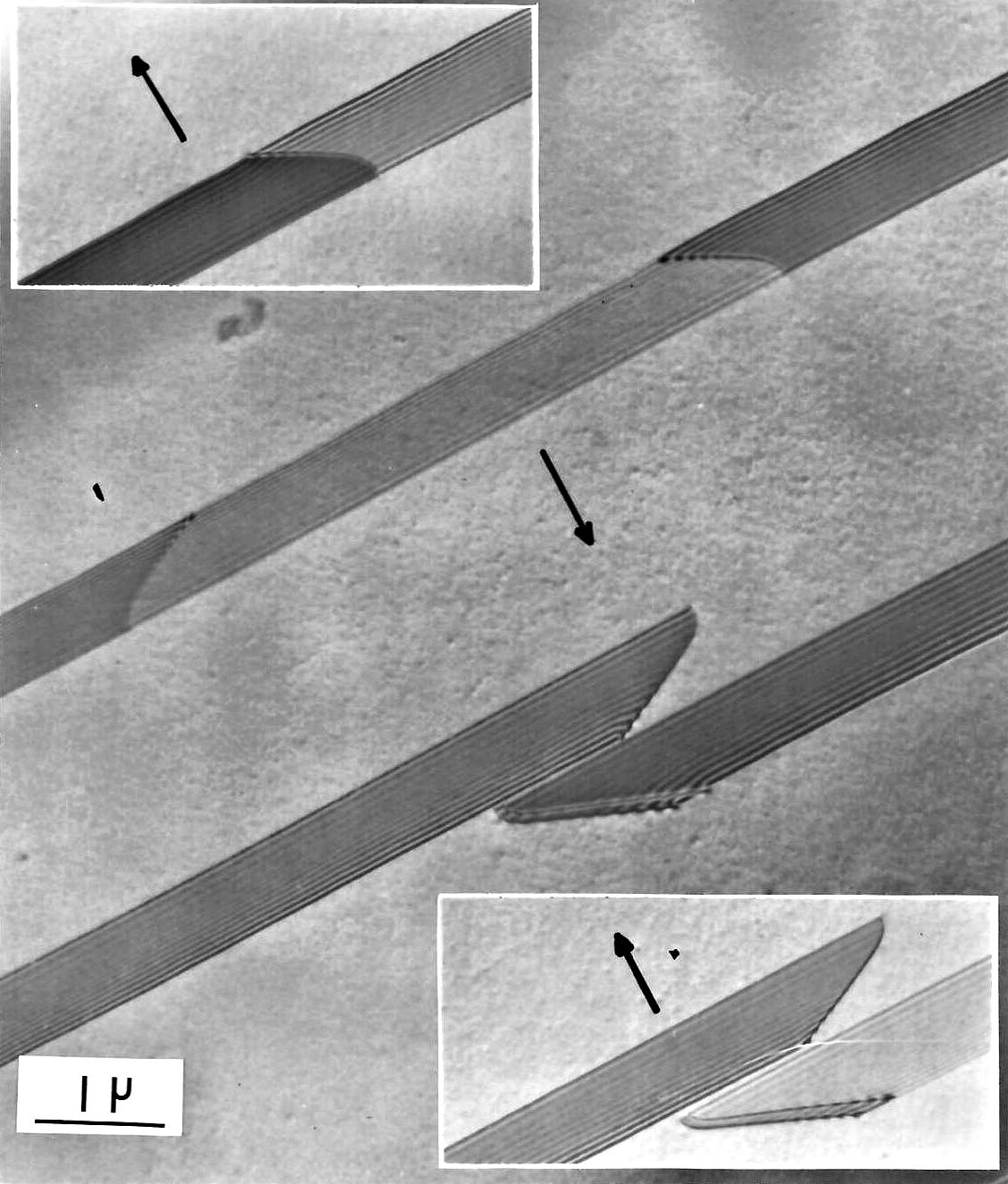

Overlapping stacking faults in Si. A significant contrast change is visible upon reversing the sign of g={220} as shown in the inserts

With frame

3.4 Weak Beam Contrast of Stacking Faults in TEM

Kristallfehler in hochintegrierten Schaltkreisen aus Silizium
